Product
Weidmueller
1049240000
WFF 120 NFF
Request a Quote

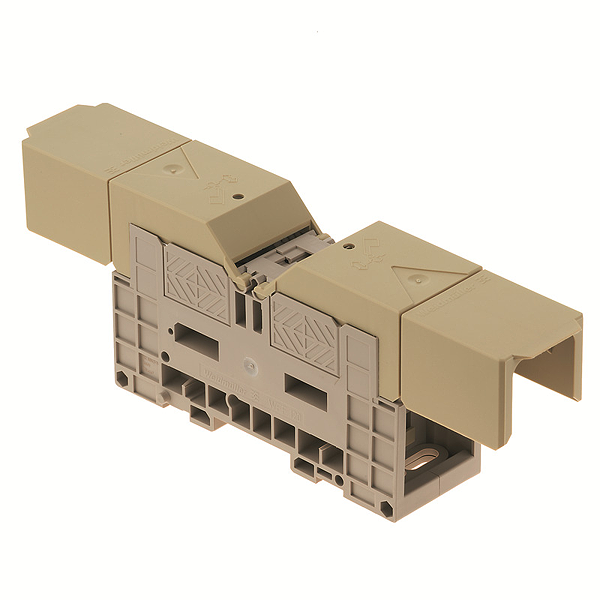

Image copyright: Weidmueller
Weidmueller 1049240000
WFF 120 NFF
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | WFF 120 NFF |
| Order No.: | 1049240000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Direct mounting, TS 35 |
| GTIN (EAN): | 4050118255140 |
| Qty.: | 4 pc(s). |
| Width: | 42 mm |
| Width (inches): | 1.654 inch |
| Height: | 132 mm |
| Height (inches): | 5.197 inch |
| Depth: | 72.5 mm |
| Depth (inches): | 2.854 inch |
| Net weight: | 264.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Installation advice: | Direct mounting, TS 35 |
| Open sides: | closed |
| Cable lug to DIN 46234: | 6...150 mm² |
| Clamping range, bolted connection , max.: | 150 mm² |
| Clamping range, bolted connection , min.: | 6 mm² |
| Clamping range, max.: | 150 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 2 |
| Tightening torque, max.: | 36 Nm |
| Tightening torque, min.: | 30 Nm |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 500 V |
| Rated current: | 269 A |
| Current at maximum wires: | 269 A |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Cable lug to DIN 46234: | 6...150 mm² |
| Clamping range, bolted connection , max.: | 150 mm² |
| Clamping range, bolted connection , min.: | 6 mm² |
| Tightening torque, max.: | 36 Nm |
| Tightening torque, min.: | 30 Nm |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | WFF 120 NFF |
| Order No.: | 1049240000 |
| Version: | Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Direct mounting, TS 35 |
| GTIN (EAN): | 4050118255140 |
| Qty.: | 4 pc(s). |
| Width: | 42 mm |
| Width (inches): | 1.654 inch |
| Height: | 132 mm |
| Height (inches): | 5.197 inch |
| Depth: | 72.5 mm |
| Depth (inches): | 2.854 inch |
| Net weight: | 264.8 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | dark beige |
| UL 94 flammability rating: | V-0 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35 |
| Installation advice: | Direct mounting, TS 35 |
| Open sides: | closed |
| Cable lug to DIN 46234: | 6...150 mm² |
| Clamping range, bolted connection , max.: | 150 mm² |
| Clamping range, bolted connection , min.: | 6 mm² |
| Clamping range, max.: | 150 mm² |
| Clamping range, min.: | 6 mm² |
| Number of connections: | 2 |
| Tightening torque, max.: | 36 Nm |
| Tightening torque, min.: | 30 Nm |
| Rated cross-section: | 120 mm² |
| Rated voltage: | 500 V |
| Rated current: | 269 A |
| Current at maximum wires: | 269 A |
| Volume resistance according to IEC 60947-7-x: | 0.12 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 8.61 W |
| Cable lug to DIN 46234: | 6...150 mm² |
| Clamping range, bolted connection , max.: | 150 mm² |
| Clamping range, bolted connection , min.: | 6 mm² |
| Tightening torque, max.: | 36 Nm |
| Tightening torque, min.: | 30 Nm |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.313 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
