Product
Weidmueller
1007980000
ZP 2.5/1AN/QV ZAO.RA GN
Request a Quote

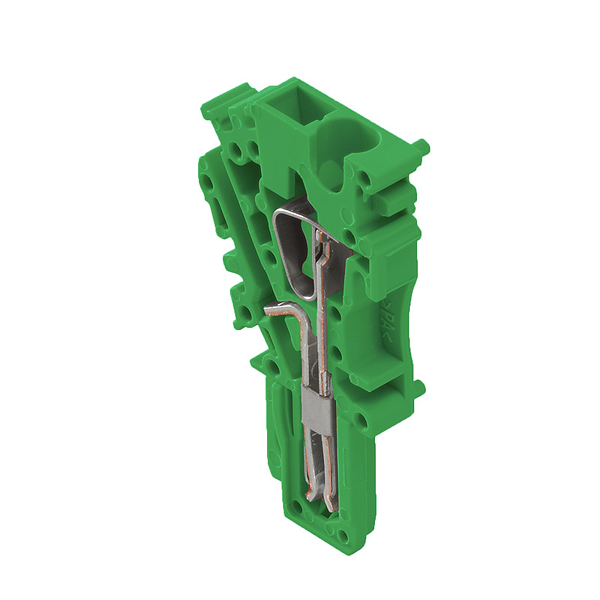

Image copyright: Weidmueller
Weidmueller 1007980000
ZP 2.5/1AN/QV ZAO.RA GN
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZP 2.5/1AN/QV ZAO.RA GN |
| Order No.: | 1007980000 |
| Version: | Z-series, Plug-in connector, Direct mounting |
| GTIN (EAN): | 4032248711369 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 23 mm |
| Height (inches): | 0.906 inch |
| Depth: | 41 mm |
| Depth (inches): | 1.614 inch |
| Net weight: | 3.96 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Version: | Set of connectors, Cross-connector, pluggable, Tension-clamp connection, With assembly peg |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Plugged |
| Certificate number (cCSAus): | 154685-1460993 |
| Current size C (cCSAus): | 20 A |
| Current size D (cCSAus): | 5 A |
| Voltage size C (cCSAus): | 300 V |
| Voltage size D (cCSAus): | 600 V |
| Wire cross section max. (cCSAusX): | 12 AWG |
| Wire cross section min. (cCSAusX): | 26 AWG |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Type of connection: | Plug-in connection |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| TS 35 offset: | 31 mm |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Max. voltage of clamp support & pluggable system: | 690 V |
| Rated current: | 24 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size C (cURus): | 20 A |
| Current size D (cURus): | 5 A |
| Voltage size C (cURus): | 300 V |
| Voltage size D (cURus): | 600 V |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | ZP 2.5/1AN/QV ZAO.RA GN |
| Order No.: | 1007980000 |
| Version: | Z-series, Plug-in connector, Direct mounting |
| GTIN (EAN): | 4032248711369 |
| Qty.: | 50 pc(s). |
| Width: | 5.1 mm |
| Width (inches): | 0.201 inch |
| Height: | 23 mm |
| Height (inches): | 0.906 inch |
| Depth: | 41 mm |
| Depth (inches): | 1.614 inch |
| Net weight: | 3.96 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 120 °C |
| Material: | Wemid |
| Colour: | green |
| UL 94 flammability rating: | V-0 |
| Version: | Set of connectors, Cross-connector, pluggable, Tension-clamp connection, With assembly peg |
| End cover plate required: | Yes |
| Number of levels: | 1 |
| Number of clamping points per level: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Installation advice: | Direct mounting |
| Open sides: | right |
| Type of mounting: | Plugged |
| Certificate number (cCSAus): | 154685-1460993 |
| Current size C (cCSAus): | 20 A |
| Current size D (cCSAus): | 5 A |
| Voltage size C (cCSAus): | 300 V |
| Voltage size D (cCSAus): | 600 V |
| Wire cross section max. (cCSAusX): | 12 AWG |
| Wire cross section min. (cCSAusX): | 26 AWG |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.13 mm² |
| Number of connections: | 1 |
| Stripping length: | 10 mm |
| Type of connection: | Plug-in connection |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| TS 35 offset: | 31 mm |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Max. voltage of clamp support & pluggable system: | 690 V |
| Rated current: | 24 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Certificate No. (cURus): | E60693 |
| Conductor size Factory wiring max. (cURus): | 12 AWG |
| Conductor size Factory wiring min. (cURus): | 26 AWG |
| Conductor size Field wiring max. (cURus): | 12 AWG |
| Conductor size Field wiring min. (cURus): | 26 AWG |
| Current size C (cURus): | 20 A |
| Current size D (cURus): | 5 A |
| Voltage size C (cURus): | 300 V |
| Voltage size D (cURus): | 600 V |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.004 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
