Weidmueller
0620320000
MK 6/3
Request a Quote
Image copyright: Weidmueller

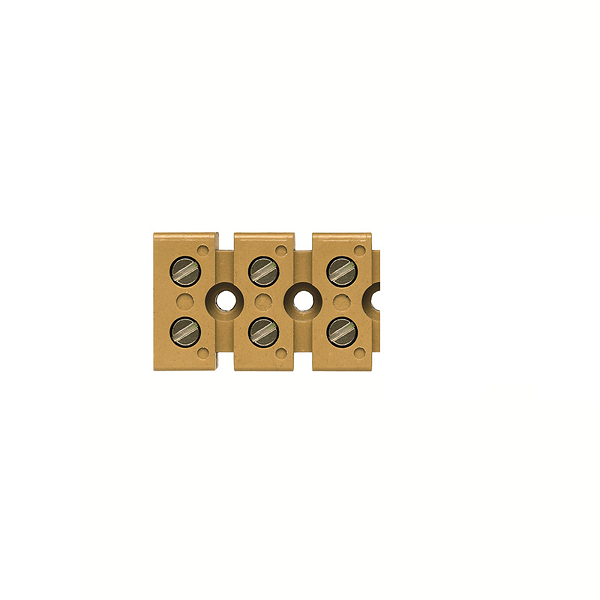

Weidmueller 0620320000
MK 6/3
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 6 mm², Screw connection, Direct mounting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | MK 6/3 |
| Order No.: | 0620320000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 6 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190077440 |
| Qty.: | 50 pc(s). |
| Width: | 23 mm |
| Width (inches): | 0.906 inch |
| Height: | 36.5 mm |
| Height (inches): | 1.437 inch |
| Depth: | 22 mm |
| Depth (inches): | 0.866 inch |
| Weight: | 33.7 g |
| Net weight: | 23.5 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Certificate No. (CSA): | 12400-150 |
| Current size B (CSA): | 40 A |
| Current size C (CSA): | 40 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 10 AWG |
| Wire cross section min. (CSA): | 22 AWG |
| Blade size: | 4.0 x 0.8 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 6 |
| Stripping length: | 9 mm |
| Tightening torque, max.: | 2 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Torque level with DMS electric screwdriver: | 4 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 10 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 690 V |
| Rated current: | 41 A |
| Current at maximum wires: | 41 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 10 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 10 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size B (UR): | 30 A |
| Current size C (UR): | 30 A |
| Voltage size B (UR): | 300 V |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | MK 6/3 |
| Order No.: | 0620320000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 6 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190077440 |
| Qty.: | 50 pc(s). |
| Width: | 23 mm |
| Width (inches): | 0.906 inch |
| Height: | 36.5 mm |
| Height (inches): | 1.437 inch |
| Depth: | 22 mm |
| Depth (inches): | 0.866 inch |
| Weight: | 33.7 g |
| Net weight: | 23.5 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Certificate No. (CSA): | 12400-150 |
| Current size B (CSA): | 40 A |
| Current size C (CSA): | 40 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 10 AWG |
| Wire cross section min. (CSA): | 22 AWG |
| Blade size: | 4.0 x 0.8 mm |
| Clamping range, max.: | 6 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 6 |
| Stripping length: | 9 mm |
| Tightening torque, max.: | 2 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Torque level with DMS electric screwdriver: | 4 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 10 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 6 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 690 V |
| Rated current: | 41 A |
| Current at maximum wires: | 41 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 10 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 10 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size B (UR): | 30 A |
| Current size C (UR): | 30 A |
| Voltage size B (UR): | 300 V |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
