Product
Weidmueller
0480220000
MF 1/12 4X6.3/2.8
Request a Quote
Image copyright: Weidmueller

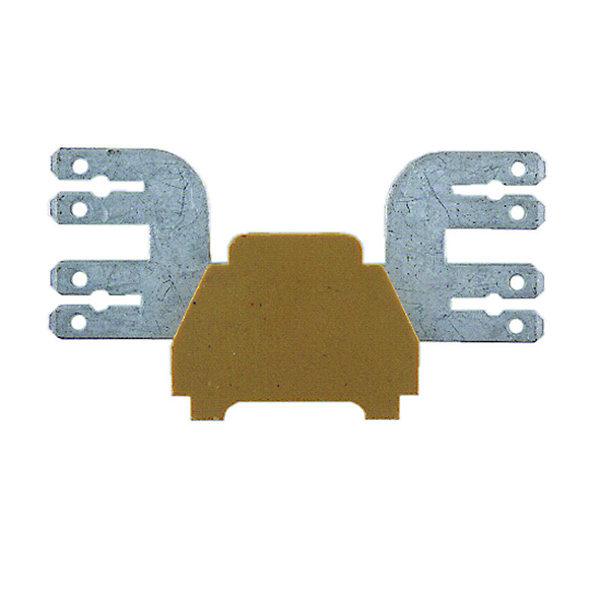

Weidmueller 0480220000
MF 1/12 4X6.3/2.8
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Flat-blade connection, Direct mounting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | MF 1/12 4X6.3/2.8 |
| Order No.: | 0480220000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Flat-blade connection, Direct mounting |
| GTIN (EAN): | 4008190087104 |
| Qty.: | 50 pc(s). |
| Width: | 113 mm |
| Width (inches): | 4.449 inch |
| Height: | 6,800 mm |
| Height (inches): | 267.716 inch |
| Depth: | 12.5 mm |
| Depth (inches): | 0.492 inch |
| Weight: | 54.68 g |
| Net weight: | 52.84 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA, V-0 |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Certificate No. (CSA): | 12400-221 |
| Current size B (CSA): | 20 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 150 V |
| Voltage size D (CSA): | 300 V |
| Connection direction: | on side |
| Number of connections: | 8 |
| Type of connection: | Flat-blade connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 12 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Current size B (UR): | 10 A |
| Current size D (UR): | 10 A |
| Voltage size B (UR): | 300 V |
| Voltage size D (UR): | 300 V |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | MF 1/12 4X6.3/2.8 |
| Order No.: | 0480220000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Flat-blade connection, Direct mounting |
| GTIN (EAN): | 4008190087104 |
| Qty.: | 50 pc(s). |
| Width: | 113 mm |
| Width (inches): | 4.449 inch |
| Height: | 6,800 mm |
| Height (inches): | 267.716 inch |
| Depth: | 12.5 mm |
| Depth (inches): | 0.492 inch |
| Weight: | 54.68 g |
| Net weight: | 52.84 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA, V-0 |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Certificate No. (CSA): | 12400-221 |
| Current size B (CSA): | 20 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 150 V |
| Voltage size D (CSA): | 300 V |
| Connection direction: | on side |
| Number of connections: | 8 |
| Type of connection: | Flat-blade connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 2.5 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 400 V |
| Rated current: | 12 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Current size B (UR): | 10 A |
| Current size D (UR): | 10 A |
| Voltage size B (UR): | 300 V |
| Voltage size D (UR): | 300 V |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
