Product
Weidmueller
0463000000
H1,0/14 GE
Request a Quote
Image copyright: Weidmueller

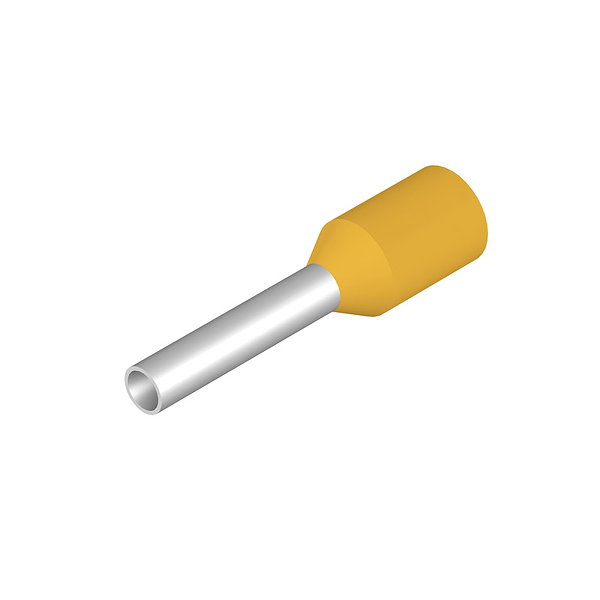

Weidmueller 0463000000
H1,0/14 GE
Wire-end ferrule, insulated, 10 mm, 8 mm, yellow
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | H1,0/14 GE |
| Order No.: | 0463000000 |
| Version: | Wire-end ferrule, insulated, 10 mm, 8 mm, yellow |
| GTIN (EAN): | 4008190024697 |
| Qty.: | 500 pc(s). |
| Packaging: | loose |
| Net weight: | 0.097 g |
| Version: | insulated |
| Collar diameter (D2): | 3 mm |
| Colour code: | Weidmüller |
| Conductor cross-section: | 1 mm² |
| Contact surface diameter (D1): | 1.4 mm |
| Contact surface length (L2): | 8 mm |
| L1 in mm: | 14 mm |
| Metal sleeve thickness (S1): | 0.15 mm |
| Military designation: | T 20A 004 A |
| Plastic collar thickness (S2): | 0.25 mm |
| Stripping length: | 10 mm |
| Wire connection cross section AWG, max.: | AWG 17 |
| ETIM 6.0: | EC000005 |
| ETIM 7.0: | EC000005 |
| eClass 9.0: | 27-40-02-01 |
| eClass 9.1: | 27-40-02-01 |
| eClass 10.0: | 27-40-02-01 |
| UNSPSC: | 31-16-31-02 |
| ROHS: | Conform |
| Type: | H1,0/14 GE |
| Order No.: | 0463000000 |
| Version: | Wire-end ferrule, insulated, 10 mm, 8 mm, yellow |
| GTIN (EAN): | 4008190024697 |
| Qty.: | 500 pc(s). |
| Packaging: | loose |
| Net weight: | 0.097 g |
| Version: | insulated |
| Collar diameter (D2): | 3 mm |
| Colour code: | Weidmüller |
| Conductor cross-section: | 1 mm² |
| Contact surface diameter (D1): | 1.4 mm |
| Contact surface length (L2): | 8 mm |
| L1 in mm: | 14 mm |
| Metal sleeve thickness (S1): | 0.15 mm |
| Military designation: | T 20A 004 A |
| Plastic collar thickness (S2): | 0.25 mm |
| Stripping length: | 10 mm |
| Wire connection cross section AWG, max.: | AWG 17 |
| ETIM 6.0: | EC000005 |
| ETIM 7.0: | EC000005 |
| eClass 9.0: | 27-40-02-01 |
| eClass 9.1: | 27-40-02-01 |
| eClass 10.0: | 27-40-02-01 |
| UNSPSC: | 31-16-31-02 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
