Product
Weidmueller
0459500000
ZBE 6
Request a Quote

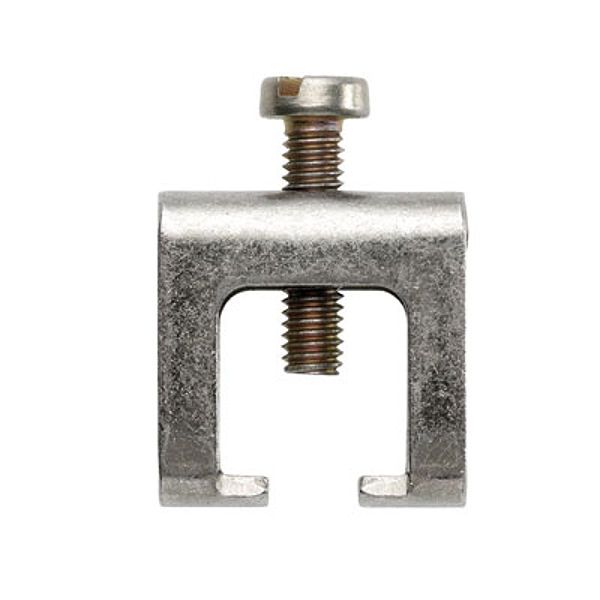

Image copyright: Weidmueller
Weidmueller 0459500000
ZBE 6
Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, Busbar, Direct mounting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | ZBE 6 |
| Order No.: | 0459500000 |
| Version: | Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, Busbar, Direct mounting |
| GTIN (EAN): | 4008190032692 |
| Qty.: | 50 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 19 mm |
| Height (inches): | 0.748 inch |
| Depth: | 28 mm |
| Depth (inches): | 1.102 inch |
| Net weight: | 9.08 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Material: | Steel |
| Colour: | silver |
| Certificate No. (ATEX): | DEMKO03ATEX136028U |
| Certificate No. (IECEX): | IECEXULD13.0005U |
| Wire cross section max. (ATEX): | 6 mm² |
| Wire cross section max. (IECEX): | 6 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | for busbar 10 x 3 mm, for busbar 10 x 5 mm |
| Installation advice: | Busbar, Direct mounting |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 12400-237 |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 22 AWG |
| Clamping screw: | M 4 |
| Stripping length: | 19 mm |
| Tightening torque, min.: | 1.2 Nm |
| Type of connection: | Clamping yoke |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 1 mm² |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 20 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 20 AWG |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | ZBE 6 |
| Order No.: | 0459500000 |
| Version: | Accessories, Clamping yoke for busbar, Rated cross-section: Clamping yoke, Busbar, Direct mounting |
| GTIN (EAN): | 4008190032692 |
| Qty.: | 50 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 19 mm |
| Height (inches): | 0.748 inch |
| Depth: | 28 mm |
| Depth (inches): | 1.102 inch |
| Net weight: | 9.08 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Material: | Steel |
| Colour: | silver |
| Certificate No. (ATEX): | DEMKO03ATEX136028U |
| Certificate No. (IECEX): | IECEXULD13.0005U |
| Wire cross section max. (ATEX): | 6 mm² |
| Wire cross section max. (IECEX): | 6 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | for busbar 10 x 3 mm, for busbar 10 x 5 mm |
| Installation advice: | Busbar, Direct mounting |
| Type of mounting: | when screwed in |
| Certificate No. (CSA): | 12400-237 |
| Wire cross section max. (CSA): | 8 AWG |
| Wire cross section min. (CSA): | 22 AWG |
| Clamping screw: | M 4 |
| Stripping length: | 19 mm |
| Tightening torque, min.: | 1.2 Nm |
| Type of connection: | Clamping yoke |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 1 mm² |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 20 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 20 AWG |
| ETIM 6.0: | EC002848 |
| ETIM 7.0: | EC002848 |
| eClass 9.0: | 27-14-11-92 |
| eClass 9.1: | 27-14-11-92 |
| eClass 10.0: | 27-14-11-92 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
