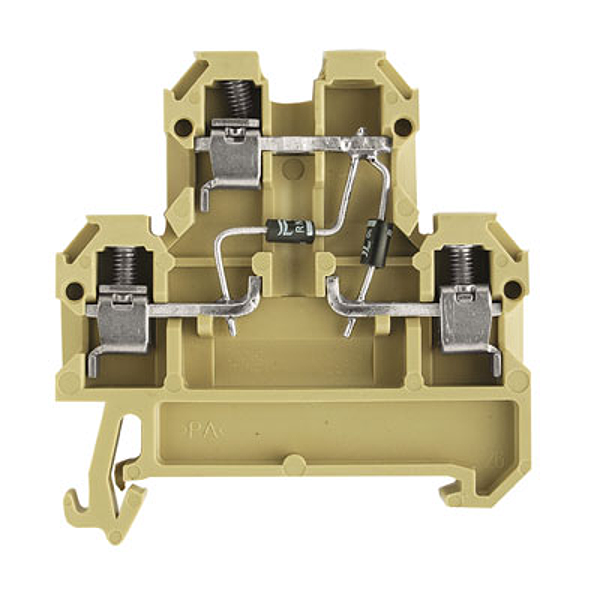

Image copyright: Weidmueller
Weidmueller 0396860000
DK 4/35 2D GET.SCH. A2
SAK Series, Component terminal, Rated cross-section: 4 mm², Screw connection
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | DK 4/35 2D GET.SCH. A2 |
| Order No.: | 0396860000 |
| Version: | SAK Series, Component terminal, Rated cross-section: 4 mm², Screw connection |
| GTIN (EAN): | 4008190027100 |
| Qty.: | 25 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 50 mm |
| Height (inches): | 1.969 inch |
| Depth: | 52.5 mm |
| Depth (inches): | 2.067 inch |
| Net weight: | 10.72 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, with diode |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component 1: | 1 N 4007 |
| Component current: | 1 A |
| Component type: | Diode |
| Component voltage: | 1,000 V |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 4 |
| Stripping length: | 9 mm |
| Tightening torque, max.: | 0.8 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Torque level with DMS electric screwdriver: | 2 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 27 mm |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 380 V |
| Rated current: | 10 A |
| Current at maximum wires: | 10 A |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | DK 4/35 2D GET.SCH. A2 |
| Order No.: | 0396860000 |
| Version: | SAK Series, Component terminal, Rated cross-section: 4 mm², Screw connection |
| GTIN (EAN): | 4008190027100 |
| Qty.: | 25 pc(s). |
| Width: | 6 mm |
| Width (inches): | 0.236 inch |
| Height: | 50 mm |
| Height (inches): | 1.969 inch |
| Depth: | 52.5 mm |
| Depth (inches): | 2.067 inch |
| Net weight: | 10.72 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, with diode |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 2 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | Yes |
| PE connection: | No |
| Rail: | TS 35 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Component 1: | 1 N 4007 |
| Component current: | 1 A |
| Component type: | Diode |
| Component voltage: | 1,000 V |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 3 |
| Connection cross-section, stranded, max.: | 4 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A3 |
| Number of connections: | 4 |
| Stripping length: | 9 mm |
| Tightening torque, max.: | 0.8 Nm |
| Tightening torque, min.: | 0.5 Nm |
| Torque level with DMS electric screwdriver: | 2 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 35 offset: | 27 mm |
| Rated cross-section: | 4 mm² |
| Rated voltage: | 380 V |
| Rated current: | 10 A |
| Current at maximum wires: | 10 A |
| Volume resistance according to IEC 60947-7-x: | 1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.02 W |
| Pollution severity: | 3 |
| ETIM 6.0: | EC000903 |
| ETIM 7.0: | EC000903 |
| eClass 9.0: | 27-14-11-27 |
| eClass 9.1: | 27-14-11-47 |
| eClass 10.0: | 27-14-11-27 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
