Product
Weidmueller
0359420000
SAKS 5 380AC
Request a Quote

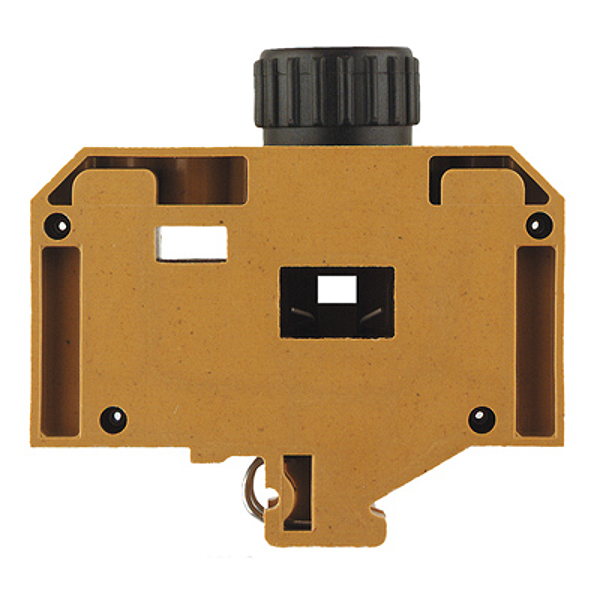

Image copyright: Weidmueller
Weidmueller 0359420000
SAKS 5 380AC
0359420000
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Available until: | 2018-07-01 |
| Type: | SAKS 5 380AC |
| Order No.: | 0359420000 |
| GTIN (EAN): | 4008190036010 |
| Qty.: | 20 pc(s). |
| Width: | 28 mm |
| Width (inches): | 1.102 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 66 mm |
| Depth (inches): | 2.598 inch |
| Net weight: | 115.65 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Screw connection, Fuse cartridge, One end without connector |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-154 |
| Current size C (CSA): | 63 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 14 AWG |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 1.5 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 16 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B7 |
| Number of connections: | 2 |
| Stripping length: | 13 mm |
| Tightening torque, max.: | 2.4 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Torque level with DMS electric screwdriver: | 4 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 6 |
| Wire connection cross section AWG, min.: | AWG 14 |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Operating voltage for display, max.: | 400 V |
| Type of voltage for indicator: | AC |
| Cartridge fuse: | E18 |
| Display: | Without LED |
| Fuse holder (cartridge holder): | for screw fixing |
| Operating voltage, max.: | 400 V |
| Type of voltage for indicator: | AC |
| Rated cross-section: | 16 mm² |
| Rated voltage: | 400 V |
| Rated current: | 63 A |
| Current at maximum wires: | 63 A |
| Standards: | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 6 AWG |
| Conductor size Factory wiring min. (UR): | 14 AWG |
| Conductor size Field wiring max. (UR): | 6 AWG |
| Conductor size Field wiring min. (UR): | 14 AWG |
| Current size C (UR): | 40 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Available until: | 2018-07-01 |
| Type: | SAKS 5 380AC |
| Order No.: | 0359420000 |
| GTIN (EAN): | 4008190036010 |
| Qty.: | 20 pc(s). |
| Width: | 28 mm |
| Width (inches): | 1.102 inch |
| Height: | 80 mm |
| Height (inches): | 3.15 inch |
| Depth: | 66 mm |
| Depth (inches): | 2.598 inch |
| Net weight: | 115.65 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Screw connection, Fuse cartridge, One end without connector |
| End cover plate required: | No |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | closed |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-154 |
| Current size C (CSA): | 63 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 14 AWG |
| Blade size: | 1.0 x 5.5 mm |
| Clamping range, max.: | 16 mm² |
| Clamping range, min.: | 1.5 mm² |
| Clamping screw: | M 4 |
| Connection cross-section, stranded, max.: | 16 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | B7 |
| Number of connections: | 2 |
| Stripping length: | 13 mm |
| Tightening torque, max.: | 2.4 Nm |
| Tightening torque, min.: | 1.2 Nm |
| Torque level with DMS electric screwdriver: | 4 |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 6 |
| Wire connection cross section AWG, min.: | AWG 14 |
| Wire connection cross section, finely stranded, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 16 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 1.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 1.5 mm² |
| Wire connection cross-section, solid core, max.: | 16 mm² |
| Wire connection cross-section, solid core, min.: | 1.5 mm² |
| Operating voltage for display, max.: | 400 V |
| Type of voltage for indicator: | AC |
| Cartridge fuse: | E18 |
| Display: | Without LED |
| Fuse holder (cartridge holder): | for screw fixing |
| Operating voltage, max.: | 400 V |
| Type of voltage for indicator: | AC |
| Rated cross-section: | 16 mm² |
| Rated voltage: | 400 V |
| Rated current: | 63 A |
| Current at maximum wires: | 63 A |
| Standards: | IEC 60947-7-3 |
| Volume resistance according to IEC 60947-7-x: | 0.42 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 2.43 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 6 AWG |
| Conductor size Factory wiring min. (UR): | 14 AWG |
| Conductor size Field wiring max. (UR): | 6 AWG |
| Conductor size Field wiring min. (UR): | 14 AWG |
| Current size C (UR): | 40 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000899 |
| ETIM 7.0: | EC000899 |
| eClass 9.0: | 27-14-11-16 |
| eClass 9.1: | 27-14-11-16 |
| eClass 10.0: | 27-14-11-16 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | 4008190036010 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
