Weidmueller 0359260000
AP DK4

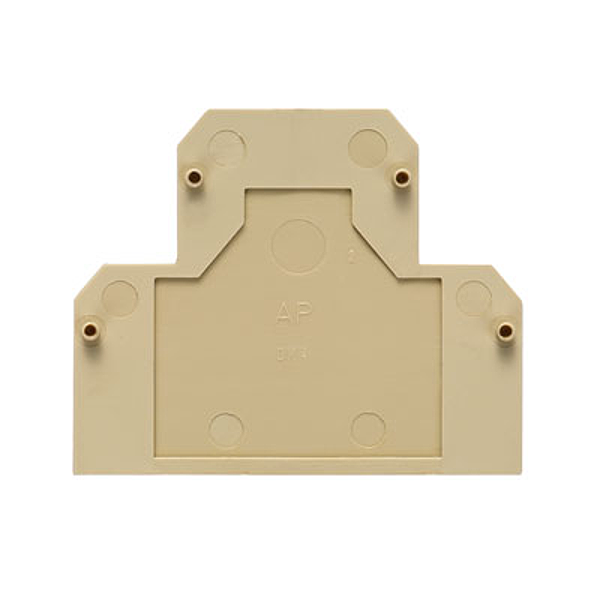

SAK Series, End plate, 1.5 mm, beige, Direct mounting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | AP DK4 |
| Order No.: | 0359260000 |
| Version: | SAK Series, End plate, 1.5 mm, beige, Direct mounting |
| GTIN (EAN): | 4008190012991 |
| Qty.: | 20 pc(s). |
| Width: | 1.5 mm |
| Width (inches): | 0.059 inch |
| Height: | 50 mm |
| Height (inches): | 1.969 inch |
| Depth: | 41.2 mm |
| Depth (inches): | 1.622 inch |
| Net weight: | 2.135 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige |
| UL 94 flammability rating: | V-2 |
| Version: | End plate |
| Installation advice: | Direct mounting |
| Snap-on: | Yes |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
| Type: | AP DK4 |
| Order No.: | 0359260000 |
| Version: | SAK Series, End plate, 1.5 mm, beige, Direct mounting |
| GTIN (EAN): | 4008190012991 |
| Qty.: | 20 pc(s). |
| Width: | 1.5 mm |
| Width (inches): | 0.059 inch |
| Height: | 50 mm |
| Height (inches): | 1.969 inch |
| Depth: | 41.2 mm |
| Depth (inches): | 1.622 inch |
| Net weight: | 2.135 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige |
| UL 94 flammability rating: | V-2 |
| Version: | End plate |
| Installation advice: | Direct mounting |
| Snap-on: | Yes |
| ETIM 6.0: | EC000886 |
| ETIM 7.0: | EC000886 |
| eClass 9.1: | 27-14-11-33 |
| eClass 10.0: | 27-14-11-33 |
| UNSPSC: | 30-21-18-27 |
| ROHS: | Conform |
