Product
Weidmueller
0270860000
QS 2/10/4
Request a Quote

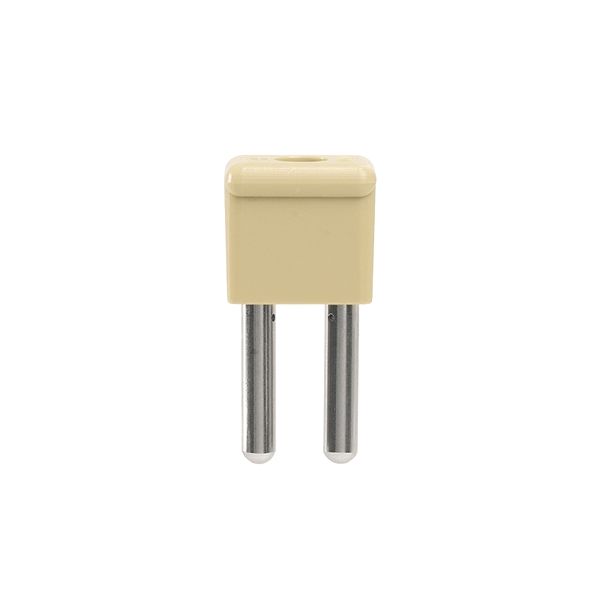

Image copyright: Weidmueller
Weidmueller 0270860000
QS 2/10/4
SAK Series, Cross-connector, for cross-connection link, Number of poles: 2
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | QS 2/10/4 |
| Order No.: | 0270860000 |
| Version: | SAK Series, Cross-connector, for cross-connection link, Number of poles: 2 |
| GTIN (EAN): | 4008190062620 |
| Qty.: | 20 pc(s). |
| Width: | 12 mm |
| Width (inches): | 0.472 inch |
| Height: | 20 mm |
| Height (inches): | 0.787 inch |
| Depth: | 34.5 mm |
| Depth (inches): | 1.358 inch |
| Net weight: | 7 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | PA 66 |
| Colour: | beige |
| UL 94 flammability rating: | V-2 |
| Version: | for cross-connection link |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | Plugged |
| Pitch in mm (P): | 10 mm |
| Rated current: | 44 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | QS 2/10/4 |
| Order No.: | 0270860000 |
| Version: | SAK Series, Cross-connector, for cross-connection link, Number of poles: 2 |
| GTIN (EAN): | 4008190062620 |
| Qty.: | 20 pc(s). |
| Width: | 12 mm |
| Width (inches): | 0.472 inch |
| Height: | 20 mm |
| Height (inches): | 0.787 inch |
| Depth: | 34.5 mm |
| Depth (inches): | 1.358 inch |
| Net weight: | 7 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | PA 66 |
| Colour: | beige |
| UL 94 flammability rating: | V-2 |
| Version: | for cross-connection link |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of fixing: | Plugged |
| Pitch in mm (P): | 10 mm |
| Rated current: | 44 A |
| ETIM 6.0: | EC000489 |
| ETIM 7.0: | EC000489 |
| eClass 9.0: | 27-14-11-40 |
| eClass 9.1: | 27-14-11-40 |
| eClass 10.0: | 27-14-11-40 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
