Product
Weidmueller
0270100000
TS 35X15/2.3 2M/CU/BK
Request a Quote
Image copyright: Weidmueller

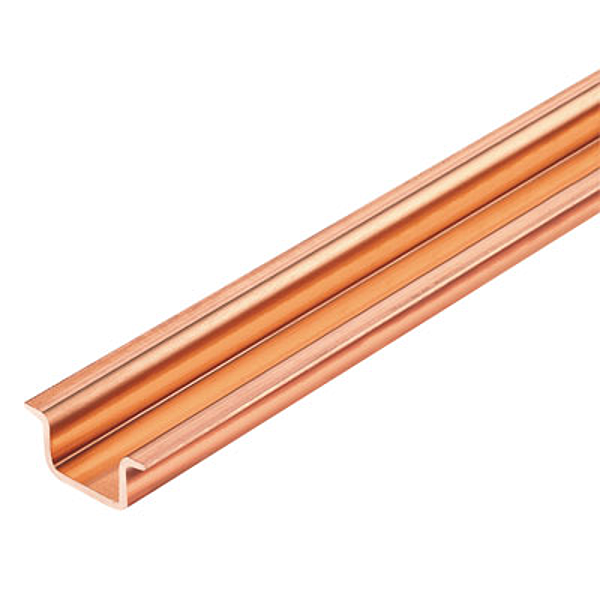

Weidmueller 0270100000
TS 35X15/2.3 2M/CU/BK
Rail, TS 35, TS 35 x 15, without slot, Copper, untreated
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | TS 35X15/2.3 2M/CU/BK |
| Order No.: | 0270100000 |
| Version: | Rail, TS 35, TS 35 x 15, without slot, Copper, untreated |
| GTIN (EAN): | 4008190105136 |
| Qty.: | 2 m |
| Width: | 35 mm |
| Width (inches): | 1.378 inch |
| Height: | 35 mm |
| Height (inches): | 1.378 inch |
| Depth: | 15 mm |
| Depth (inches): | 0.591 inch |
| Net weight: | 940 g |
| Permitted thermal current for PEN function, max.: | 309 A |
| Short circuit strength corresponds to E-Cu wire: | 150 mm² |
| Short-time withstand current according to IEC 60947-7-2: | 18 kA/1s |
| Thickness: | 2.3 mm |
| ETIM 6.0: | EC001285 |
| ETIM 7.0: | EC001285 |
| eClass 9.0: | 27-40-06-02 |
| eClass 9.1: | 27-40-06-02 |
| eClass 10.0: | 27-40-06-02 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
| Type: | TS 35X15/2.3 2M/CU/BK |
| Order No.: | 0270100000 |
| Version: | Rail, TS 35, TS 35 x 15, without slot, Copper, untreated |
| GTIN (EAN): | 4008190105136 |
| Qty.: | 2 m |
| Width: | 35 mm |
| Width (inches): | 1.378 inch |
| Height: | 35 mm |
| Height (inches): | 1.378 inch |
| Depth: | 15 mm |
| Depth (inches): | 0.591 inch |
| Net weight: | 940 g |
| Permitted thermal current for PEN function, max.: | 309 A |
| Short circuit strength corresponds to E-Cu wire: | 150 mm² |
| Short-time withstand current according to IEC 60947-7-2: | 18 kA/1s |
| Thickness: | 2.3 mm |
| ETIM 6.0: | EC001285 |
| ETIM 7.0: | EC001285 |
| eClass 9.0: | 27-40-06-02 |
| eClass 9.1: | 27-40-06-02 |
| eClass 10.0: | 27-40-06-02 |
| UNSPSC: | 30-21-18-01 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
