Product
Weidmueller
0243820000
MK 5/2 O.DE
Request a Quote

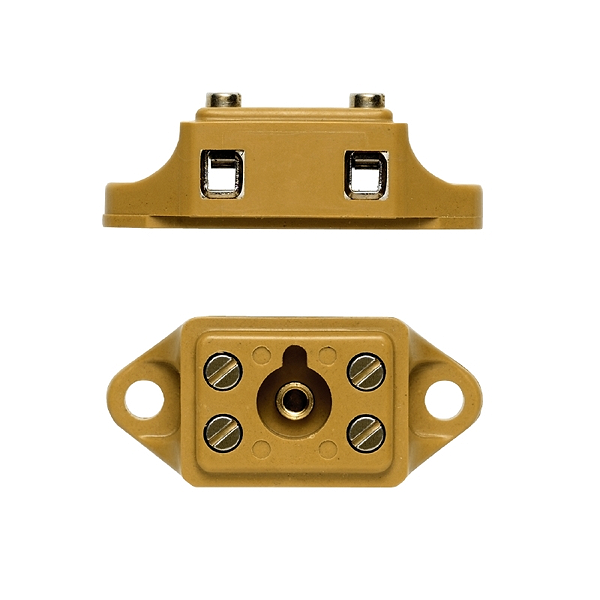

Image copyright: Weidmueller
Weidmueller 0243820000
MK 5/2 O.DE
Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | MK 5/2 O.DE |
| Order No.: | 0243820000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190035365 |
| Qty.: | 100 pc(s). |
| Width: | 18 mm |
| Width (inches): | 0.709 inch |
| Height: | 40 mm |
| Height (inches): | 1.575 inch |
| Depth: | 14.2 mm |
| Depth (inches): | 0.559 inch |
| Net weight: | 10 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Certificate No. (CSA): | 12400-161-162-163 |
| Current size B (CSA): | 25 A |
| Current size C (CSA): | 25 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 14 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.2 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 4 |
| Stripping length: | 5 mm |
| Tightening torque, min.: | 0.4 Nm |
| Torque level with DMS electric screwdriver: | 1 |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | MK 5/2 O.DE |
| Order No.: | 0243820000 |
| Version: | Multipin terminal strip, Single- and multi-pole terminal strip, Rated cross-section: 2.5 mm², Screw connection, Direct mounting |
| GTIN (EAN): | 4008190035365 |
| Qty.: | 100 pc(s). |
| Width: | 18 mm |
| Width (inches): | 0.709 inch |
| Height: | 40 mm |
| Height (inches): | 1.575 inch |
| Depth: | 14.2 mm |
| Depth (inches): | 0.559 inch |
| Net weight: | 10 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | 5VA |
| Version: | For the mounting rails |
| End cover plate required: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Type of mounting: | Direct mounting |
| Certificate No. (CSA): | 12400-161-162-163 |
| Current size B (CSA): | 25 A |
| Current size C (CSA): | 25 A |
| Current size D (CSA): | 10 A |
| Voltage size B (CSA): | 300 V |
| Voltage size C (CSA): | 300 V |
| Voltage size D (CSA): | 300 V |
| Wire cross section max. (CSA): | 14 AWG |
| Wire cross section min. (CSA): | 20 AWG |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.2 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 1.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 4 |
| Stripping length: | 5 mm |
| Tightening torque, min.: | 0.4 Nm |
| Torque level with DMS electric screwdriver: | 1 |
| Type of connection: | Screw connection |
| Wire connection cross section, finely stranded, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 24 A |
| Current at maximum wires: | 24 A |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| ETIM 6.0: | EC001284 |
| ETIM 7.0: | EC001284 |
| eClass 9.0: | 27-14-11-06 |
| eClass 9.1: | 27-14-11-06 |
| eClass 10.0: | 27-14-11-06 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
