0215560000
SAKD 2.5N
Request a Quote
Image copyright: Weidmueller
Weidmueller 0215560000
SAKD 2.5N

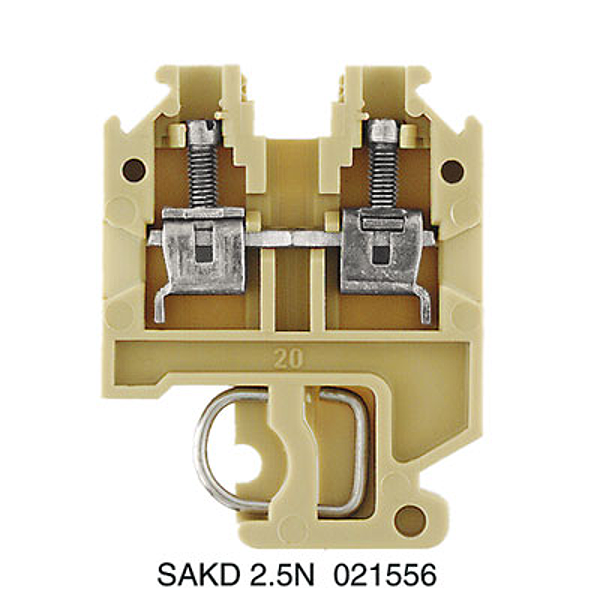

SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, beige, Direct mounting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SAKD 2.5N |
| Order No.: | 0215560000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, beige, Direct mounting |
| GTIN (EAN): | 4008190163433 |
| Qty.: | 100 pc(s). |
| Width: | 5 mm |
| Width (inches): | 0.197 inch |
| Height: | 32.5 mm |
| Height (inches): | 1.28 inch |
| Depth: | 43.5 mm |
| Depth (inches): | 1.713 inch |
| Net weight: | 6.26 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-115 |
| Current size C (CSA): | 20 A |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 22 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.08 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Torque level with DMS electric screwdriver: | 1 |
| Twin wire-end ferrules, max.: | 1 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 28 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 24 A |
| Current at maximum wires: | 30 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 28 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 28 AWG |
| Current size C (UR): | 20 A |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | SAKD 2.5N |
| Order No.: | 0215560000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 2.5 mm², Screw connection, beige, Direct mounting |
| GTIN (EAN): | 4008190163433 |
| Qty.: | 100 pc(s). |
| Width: | 5 mm |
| Width (inches): | 0.197 inch |
| Height: | 32.5 mm |
| Height (inches): | 1.28 inch |
| Depth: | 43.5 mm |
| Depth (inches): | 1.713 inch |
| Net weight: | 6.26 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | beige / yellow |
| UL 94 flammability rating: | V-2 |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | right |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-115 |
| Current size C (CSA): | 20 A |
| Voltage size C (CSA): | 300 V |
| Wire cross section max. (CSA): | 12 AWG |
| Wire cross section min. (CSA): | 22 AWG |
| Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.: | 2.5 mm² |
| Blade size: | 0.6 x 3.5 mm |
| Clamping range, max.: | 4 mm² |
| Clamping range, min.: | 0.08 mm² |
| Clamping screw: | M 2.5 |
| Connection cross-section, stranded, max.: | 2.5 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A2 |
| Number of connections: | 2 |
| Stripping length: | 10 mm |
| Tightening torque, max.: | 0.6 Nm |
| Tightening torque, min.: | 0.4 Nm |
| Torque level with DMS electric screwdriver: | 1 |
| Twin wire-end ferrules, max.: | 1 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, max.: | AWG 12 |
| Wire connection cross section AWG, min.: | AWG 28 |
| Wire connection cross section, finely stranded, max.: | 4 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 2.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 1.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 4 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| Rated cross-section: | 2.5 mm² |
| Rated voltage: | 500 V |
| Rated current: | 24 A |
| Current at maximum wires: | 30 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 1.33 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 0.77 W |
| Rated impulse withstand voltage: | 6 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 12 AWG |
| Conductor size Factory wiring min. (UR): | 28 AWG |
| Conductor size Field wiring max. (UR): | 12 AWG |
| Conductor size Field wiring min. (UR): | 28 AWG |
| Current size C (UR): | 20 A |
| Voltage size C (UR): | 300 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
