Product
Weidmueller
0212880000
SAK 6/EN BL
Request a Quote

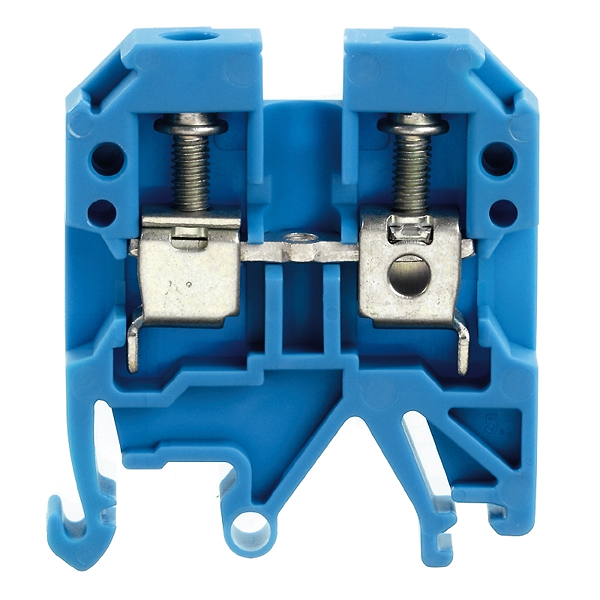

Image copyright: Weidmueller
Weidmueller 0212880000
SAK 6/EN BL
1020280000
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2018-12-31 |
| Type: | SAK 6/EN BL |
| Order No.: | 0212880000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection |
| GTIN (EAN): | 4008190107147 |
| Qty.: | 100 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 40 mm |
| Height (inches): | 1.575 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Net weight: | 14.09 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | blue |
| UL 94 flammability rating: | V-2 |
| Certificate No. (ATEX): | KEMA97ATEX1798U |
| Certificate No. (IECEX): | IECEXKEM06.0014U |
| Max. voltage (ATEX): | 690 V |
| Current (ATEX): | 36 A |
| Wire cross section max. (ATEX): | 6 mm² |
| Max. voltage (IECEX): | 690 V |
| Current (IECEX): | 36 A |
| Wire cross section max. (IECEX): | 6 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35, TS 32 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 154685-1501714 |
| Current size C (CSA): | 47 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Blade size: | 4.0 x 0.8 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Twin wire-end ferrules, max.: | 4 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 15 offset: | 21 mm |
| TS 35 offset: | 2 mm |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 800 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size C (UR): | 35 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Delivery status: | This article will no longer be available in the future. |
| Available until: | 2018-12-31 |
| Type: | SAK 6/EN BL |
| Order No.: | 0212880000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 6 mm², Screw connection |
| GTIN (EAN): | 4008190107147 |
| Qty.: | 100 pc(s). |
| Width: | 8 mm |
| Width (inches): | 0.315 inch |
| Height: | 40 mm |
| Height (inches): | 1.575 inch |
| Depth: | 47.5 mm |
| Depth (inches): | 1.87 inch |
| Net weight: | 14.09 g |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -50 °C |
| Continuous operating temp., max.: | 100 °C |
| Material: | PA 66 |
| Colour: | blue |
| UL 94 flammability rating: | V-2 |
| Certificate No. (ATEX): | KEMA97ATEX1798U |
| Certificate No. (IECEX): | IECEXKEM06.0014U |
| Max. voltage (ATEX): | 690 V |
| Current (ATEX): | 36 A |
| Wire cross section max. (ATEX): | 6 mm² |
| Max. voltage (IECEX): | 690 V |
| Current (IECEX): | 36 A |
| Wire cross section max. (IECEX): | 6 mm² |
| Operating temperature range: | For operating temperature range see EC Design Test Certificate / IEC Ex-Certificate of Conformity |
| Marking EN 60079-7: | Ex eb II C Gb |
| Ex 2014/34/EU label: | II 2 G D |
| Version: | Screw connection, for screwable cross-connection, One end without connector |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 35, TS 32 |
| N-function: | Yes |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 154685-1501714 |
| Current size C (CSA): | 47 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 6 AWG |
| Wire cross section min. (CSA): | 26 AWG |
| Blade size: | 4.0 x 0.8 mm |
| Clamping range, max.: | 10 mm² |
| Clamping range, min.: | 0.33 mm² |
| Clamping screw: | M 3.5 |
| Connection cross-section, stranded, max.: | 6 mm² |
| Connection cross-section, stranded, min.: | 0.5 mm² |
| Connection direction: | on side |
| Gauge to IEC 60947-1: | A5 |
| Number of connections: | 2 |
| Stripping length: | 12 mm |
| Tightening torque, max.: | 1.6 Nm |
| Tightening torque, min.: | 0.8 Nm |
| Torque level with DMS electric screwdriver: | 3 |
| Twin wire-end ferrules, max.: | 4 mm² |
| Twin wire-end ferrules, min.: | 0.5 mm² |
| Type of connection: | Screw connection |
| Wire connection cross section AWG, min.: | AWG 22 |
| Wire connection cross section, finely stranded, max.: | 10 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.: | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.: | 0.5 mm² |
| Wire connection cross-section, finely stranded, min.: | 0.5 mm² |
| Wire connection cross-section, solid core, max.: | 10 mm² |
| Wire connection cross-section, solid core, min.: | 0.5 mm² |
| TS 15 offset: | 21 mm |
| TS 35 offset: | 2 mm |
| Rated cross-section: | 6 mm² |
| Rated voltage: | 800 V |
| Rated current: | 41 A |
| Current at maximum wires: | 57 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.78 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 1.31 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 8 AWG |
| Conductor size Factory wiring min. (UR): | 22 AWG |
| Conductor size Field wiring max. (UR): | 8 AWG |
| Conductor size Field wiring min. (UR): | 22 AWG |
| Current size C (UR): | 35 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
