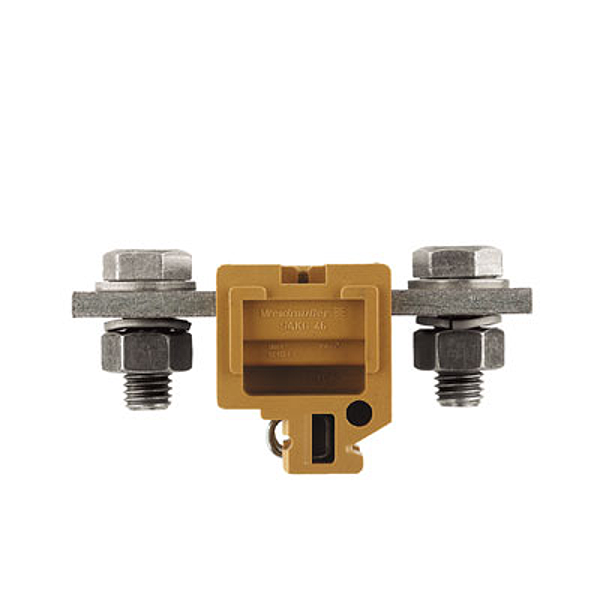

Weidmueller 0170620000
SAKG 46 II
SAK Series, Feed-through terminal, Rated cross-section: 150 mm², Threaded stud connection, medium yellow, Direct mounting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type: | SAKG 46 II |
| Order No.: | 0170620000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 150 mm², Threaded stud connection, medium yellow, Direct mounting |
| GTIN (EAN): | 4008190170592 |
| Qty.: | 5 pc(s). |
| Width: | 46 mm |
| Width (inches): | 1.811 inch |
| Height: | 106 mm |
| Height (inches): | 4.173 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Weight: | 372.2 g |
| Net weight: | 351.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Stud terminal |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-199 |
| Current size C (CSA): | 365 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 300 kcmil |
| Cable lug to DIN 46234: | 10...185 mm² |
| Cable lug to DIN 46235: | 25 - 150 mm² |
| Clamping range, max.: | 185 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 12 |
| Connection direction: | on side |
| Number of connections: | 2 |
| Tightening torque, max.: | 31 Nm |
| Tightening torque, min.: | 14 Nm |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 150 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 309 A |
| Current at maximum wires: | 353 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 9.89 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 300 kcmil |
| Conductor size Factory wiring min. (UR): | 0000 AWG |
| Conductor size Field wiring max. (UR): | 300 kcmil |
| Conductor size Field wiring min. (UR): | 0000 AWG |
| Current size C (UR): | 285 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
| Type: | SAKG 46 II |
| Order No.: | 0170620000 |
| Version: | SAK Series, Feed-through terminal, Rated cross-section: 150 mm², Threaded stud connection, medium yellow, Direct mounting |
| GTIN (EAN): | 4008190170592 |
| Qty.: | 5 pc(s). |
| Width: | 46 mm |
| Width (inches): | 1.811 inch |
| Height: | 106 mm |
| Height (inches): | 4.173 inch |
| Depth: | 57 mm |
| Depth (inches): | 2.244 inch |
| Weight: | 372.2 g |
| Net weight: | 351.2 g |
| Storage temperature, max.: | 40 °C |
| Storage temperature, min.: | 10 °C |
| Storage temperature: | 10 °C...40 °C |
| Continuous operating temp., min.: | -60 °C |
| Continuous operating temp., max.: | 130 °C |
| REACH SVHC: | Lead 7439-92-1 |
| Material: | KrG |
| Colour: | medium yellow |
| UL 94 flammability rating: | V-0, 5VA |
| Version: | Stud terminal |
| End cover plate required: | Yes |
| Number of potentials: | 1 |
| Number of levels: | 1 |
| Number of clamping points per level: | 2 |
| Number of potentials per tier: | 1 |
| Levels cross-connected internally: | No |
| PE connection: | No |
| Rail: | TS 32 |
| N-function: | No |
| PE function: | No |
| PEN function: | No |
| Explosion-tested version: | No |
| Installation advice: | Direct mounting |
| Number of similar terminals: | 1 |
| Open sides: | Open |
| Type of mounting: | Snap-on |
| Certificate No. (CSA): | 12400-199 |
| Current size C (CSA): | 365 A |
| Voltage size C (CSA): | 600 V |
| Wire cross section max. (CSA): | 300 kcmil |
| Cable lug to DIN 46234: | 10...185 mm² |
| Cable lug to DIN 46235: | 25 - 150 mm² |
| Clamping range, max.: | 185 mm² |
| Clamping range, min.: | 10 mm² |
| Clamping screw: | M 12 |
| Connection direction: | on side |
| Number of connections: | 2 |
| Tightening torque, max.: | 31 Nm |
| Tightening torque, min.: | 14 Nm |
| Type of connection: | Threaded stud connection |
| Rated cross-section: | 150 mm² |
| Rated voltage: | 1,000 V |
| Rated current: | 309 A |
| Current at maximum wires: | 353 A |
| Standards: | IEC 60947-7-1 |
| Volume resistance according to IEC 60947-7-x: | 0.1 mΩ |
| Power loss in accordance with IEC 60947-7-x: | 9.89 W |
| Rated impulse withstand voltage: | 8 kV |
| Pollution severity: | 3 |
| Certificate No. (UR): | E60693 |
| Conductor size Factory wiring max. (UR): | 300 kcmil |
| Conductor size Factory wiring min. (UR): | 0000 AWG |
| Conductor size Field wiring max. (UR): | 300 kcmil |
| Conductor size Field wiring min. (UR): | 0000 AWG |
| Current size C (UR): | 285 A |
| Voltage size C (UR): | 600 V |
| ETIM 6.0: | EC000897 |
| ETIM 7.0: | EC000897 |
| eClass 9.0: | 27-14-11-20 |
| eClass 9.1: | 27-14-11-20 |
| eClass 10.0: | 27-14-11-20 |
| UNSPSC: | 30-21-18-11 |
| ROHS: | Conform |
