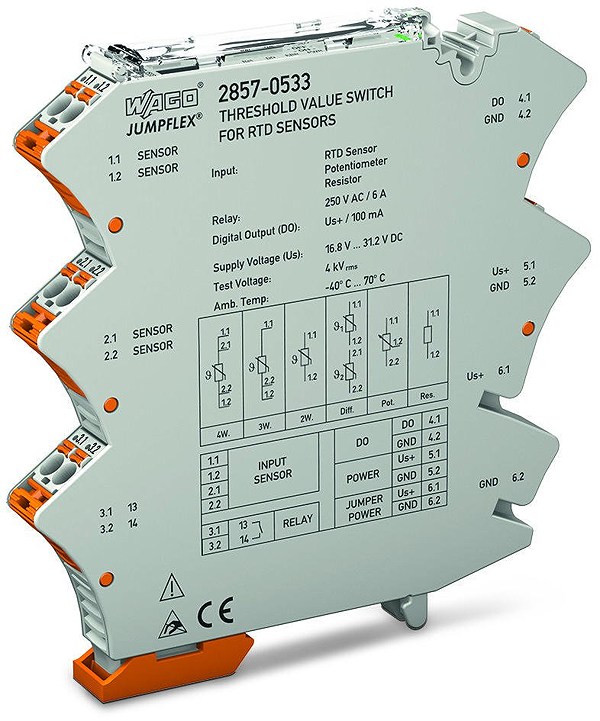

Wago 2857-533

Threshold value switches; RTD sensors; 1 make contact; Digital output; Configuration via software; Supply voltage: 24 VDC; 12.5 mm module width

Description

Both digital signal output and relay with make contact react to configured measurement range limits (on/off switching delay and threshold value switch function can be configured with up to two threshold values). Configurable RTD factor. Adjustable software filter. Input/output response simulation via configuration display. Safe 3-way isolation with 4 kV test voltage per EN 61140. The device is supplied with 24 VDC, which can be commoned using lateral push-in type jumper bars: (6.1) U. S. BR) and (6.2) GND 2 (BR). With this variant, it is necessary to ensure that the max. permissible total current of 2 A is not exceeded. Additional setting options via WAGO Interface Configuration Software or WAGO Configuration App
