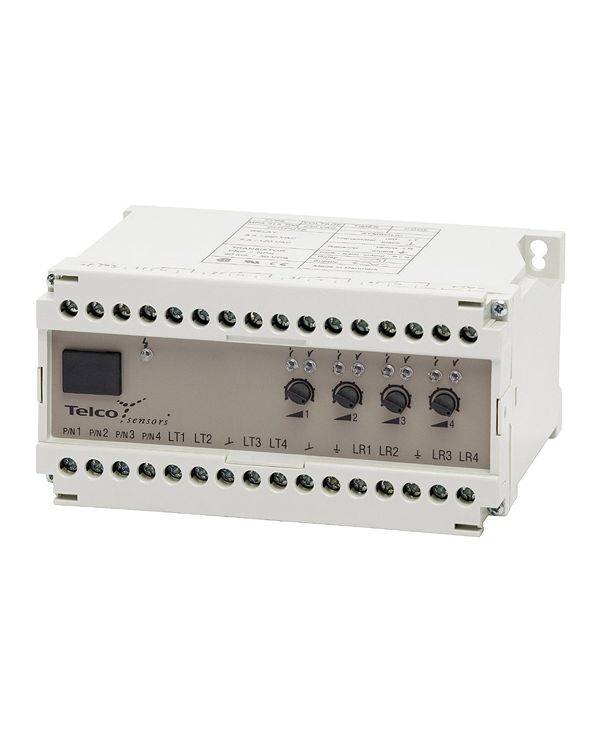

Telco 5379

MPA 41 C 700

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Function: Amplifier
Supply Voltage: 230 V ac
Number of Channels: 4
Sensing Range: 18 m
Sensitivity Adjustment: Manual
Output: 4 individual relays and 4 individual NPN/PNP
Housing: Screw terminals
Supply Voltage: 230 V ac
Voltage Tolerance: +/– 15 %
Current Consumption: Max. 6,5 VA
Response Time ton / toff, Relay: Short range: 20 ms/20 ms Long Range: 30 ms/30 ms
Response Time ton / toff, Transistor: Short range: 10 ms/10 ms Long Range: 20 ms/20 ms
Output, Relay: 1 open/ 1 close, 250 V ac/3 A, 120 V ac/5 A
Output, Transistor: 40 mA / 30 V dc
Power On Indicator: Green LED
Output Indicator: Red LED
Signal Level Indicator: Green LED
Hysteresis: Approx. 35 %
Operation Frequency, Relay: Short range: 25 Hz / Long Range: 17 Hz
Operation Frequency, Transistor: Short range: 50 Hz / Long Range: 25 Hz
Housing Material: Polycarbonate
Operation Temperature: – 10 to +50 °C
Storage Temperature: – 40 to +80 °C
Sealing Class: IP 30

Logistic parameters

ECCN:
Country of Origin:
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
