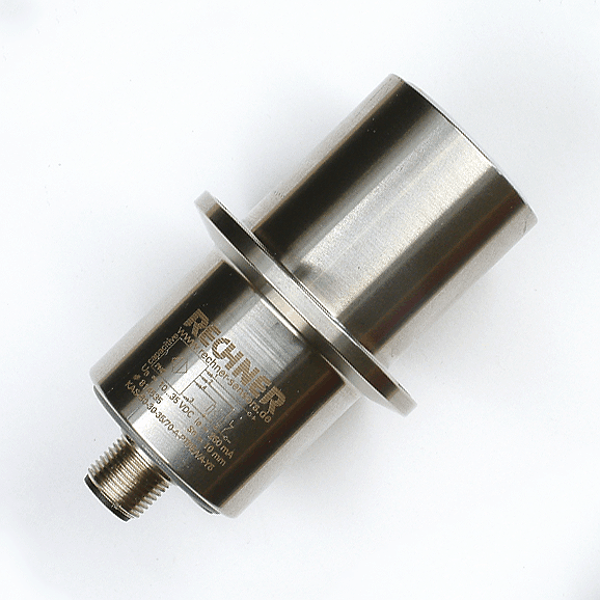

Rechner Sensors 814535

KAS-80-30-A-TRI-PTFE/VAc-Y5-1-HP

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Capacitive Sensors. Series 80 – PNP. Housing: Tri-Clamp. Housing material: Stainless steel VA. Also suitable for food applications. Sensing distance 2…25 mm adjustable. With flange connector M 12 x 1. Triclamp Tri-Clover Triclover Tri Clover Tri Clamp

Downloads

Technical parameters

Thread / Process connection: Triclamp
Housing material active surface: PTFE (FDA 21 CFR 177.1550)
Housing material: Edelstahl Nr. 1.4404
Housing material lid: PA
Electrical version: 4-Polig DC
Operating current (Ie): 2 x 0…250 mA
Voltage drop max. (Ud): ≤ 2 V
Permitted residual ripple max.: 10%
Noload current (Io): Typ. 15 mA
Frequency of operating cycles max.: 100 Hz
LEDdisplay: Grün / Gelb
Protective circuit: Eingebaut
Degree of protection IEC 60529: IP 67 (mit versiegelter Potentiometerschraube)
Norm: EN 60947-5-2
Media optimized: JA
Quattro Protect: JA
Sensing dinstance Sn: 20 mm
Operating distance min. / max. adjustable: 0,5…30 mm
Operating voltage: 10…35 V DC
Permitted ambient temperature min.: -25 °C
Permitted ambient temperature max.: +70 °C
Installation: Bündig
Output function: Antivalent (S + Ö)
Output signal: PNP
Connection: Steckerflansch M 12 x 1
CE: JA
RoHS: JA
UL CSA certification: JA
MTTF: 1454,75 Jahre
WHG certification: Auf Anfrage
