Product
Puls
SLA8.100
Request a Quote
Image copyright: Puls

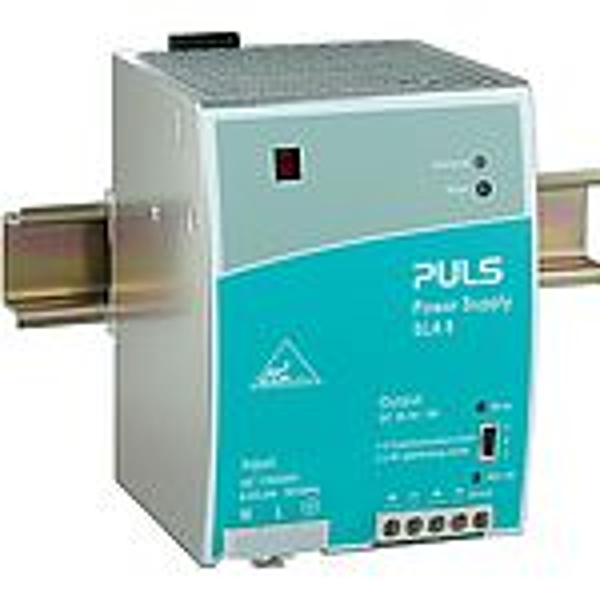

Puls SLA8.100
AS-Interface power supply
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
115 / 230V Switchable input. Efficiency up to 92%. AS-Interface decoupling network included. Supports IR-Adressing mode. Full output power between -10 and +60°C. Adjustable to FUSE-MODE which switches unit off at overload
Technical parameters
| AC-Input Voltage: | AC 100-120/220-240V (-15%/+10%) |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | not fulfilled |
| Power Factor: | 0,48 |
| Input Inrush Current Limitation: | active |
| Nominal Voltage: | 30.5Vdc |
| Adjustment Range: | 30.6 |
| Output Current Range: | 8A |
| Output Current: | 8A at 30.6V |
| Output Power: | 0W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 91mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 890g |
| Operat. Temperature Range: | -10°C ... +70°C |
| Derating: | 6W/°C at >+60°C |
| Mounting Method: | DIN-Rail |
| Efficiency, typ.: | 92,0% |
| Power Losses, typ.: | 21,2W |
| MTBF SN 29500 @ 40°C (h): | 869.000h |
| Connection method: | Screw terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
