Product
Puls
SL10.104
Request a Quote
Image copyright: Puls

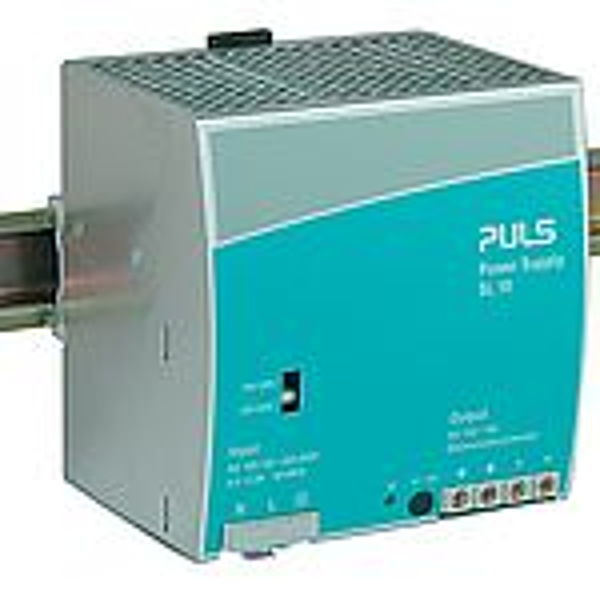

Puls SL10.104
DIN-rail power supplies for 1-phase systems
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
115 / 230V Switchable input. Efficiency up to 87%. 20% Power reserves for loads with a higher short-term power requirement. Full output power between 0 and +60°C
Technical parameters
| AC-Input Voltage: | AC 100-120/210-240V |
| DC-Input Voltage: | |
| EN61000-3-2(PFC-Norm): | not fulfilled |
| Nominal Voltage: | 12Vdc |
| Adjustment Range: | 12-15V |
| Output Current Range: | 15-12A |
| Output Current: | 12A at 15V 15A at 12V |
| Output Power: | 180W |
| max. Ripple and Noise Voltage: | 50mVpp |
| Size (WxHxD): | 120mm x 124mm x 102mm |
| Weight per Piece (excluding packing): | 980g |
| Mounting Method: | DIN-Rail |
| Connection method: | Screw terminals |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
