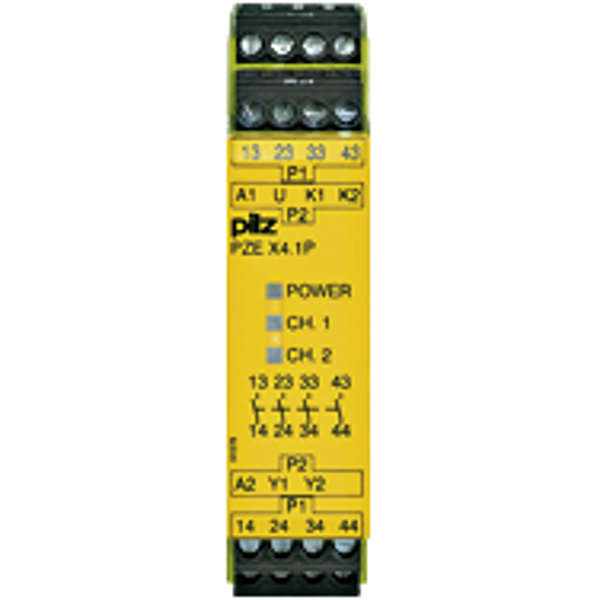

Image copyright: Pilz
Pilz 777587
PZE X4.1P 24VDC 4n/o
Contact expansion Inputs: 1-/2-channel wiring without, detection of shorts across contacts Outputs: 4 N/O. UB 24 V DC, width:. 22.5 mm plug-in terminals of screw type. Contact block for contact, expansion in connection with safety-related control components.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Light beam device mon. Type 2 with t/p, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 4, Instantaneous contact expansion |
| Operating modes:: | Single-channel, Dual-channel, without detection of shorts across contacts |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | Plug-in |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 4 |
| Number of delayed safety contacts:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 4.0 A |
| Voltage at AC15:: | 230 V |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 94.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 195 g |
| Net weight:: | 185 g |
| Ambient temperature:: | -10 - 55 °C |
