777582

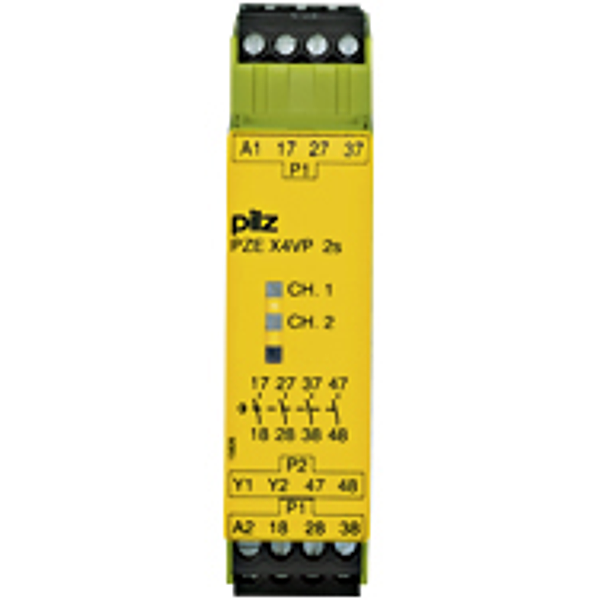

PZE X4VP 2/24VDC 4n/o fix
Contact expansion Inputs: Single-channel wiring Outputs: 4 N/O, t = 2 s fixed). UB 24 V DC, width: 22.5 mm, plug-in terminals of, screw type. Contact block for contact expansion in connection with, safety-related control components.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Delayed contact expansion |
Operating modes:: | Single-channel, without detection of shorts across contacts |
Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Terminal style:: | Plug-in |
Terminal type:: | Screw terminal |
Number of instantaneous safety contacts:: | 0 |
Number of delayed safety contacts:: | 4 |
Width dimension:: | 22.5 mm |
Height dimension:: | 94.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 215 g |
Net weight:: | 205 g |
Ambient temperature:: | -10 - 55 °C |
