777340

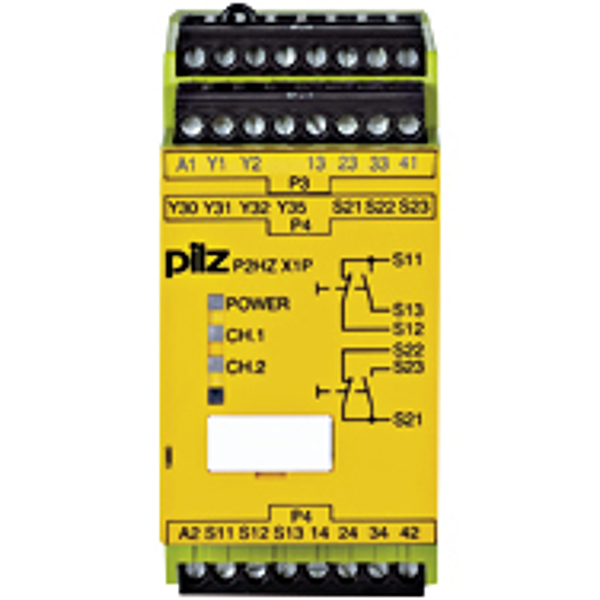

P2HZ X1P 24VDC 3n/o 1n/c 2so
Safety relay (standalone) Inputs: 1 N/O, 1 N/C per pushbutton Outputs:. 2 N/O, 1 N/C, 2 semiconductor UB 24 V DC, width: 45 mm, plug-in, terminals of screw type Two-hand control device/monitoring the, simultaneity of two-hand pushbuttons.
Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
Application options:: | Two-hand monitoring Type III C |
Standards:: | EN 574 TYP III C, EN 62061, EN ISO 13849-1, VDE 0113-1 |
Operating modes:: | Dual-channel, Detection of shorts across contacts |
Number of instantaneous safety contacts:: | 3 |
Supply voltage (V):: | 24,0 |
Supply voltage type:: | DC |
Terminal style:: | Plug-in |
Terminal type:: | Screw terminal |
Stop category:: | 0 |
Max. current at DC13 I (6 cycles/min):: | 1.5 A |
Width dimension:: | 45.0 mm |
Height dimension:: | 94.0 mm |
Depth dimension:: | 121.0 mm |
Gross weight:: | 280 g |
Net weight:: | 270 g |
Ambient temperature:: | -25 - 55 °C |
