Product
Pilz
774585
PZE X4 24VDC 4n/o
Request a Quote
Image copyright: Pilz

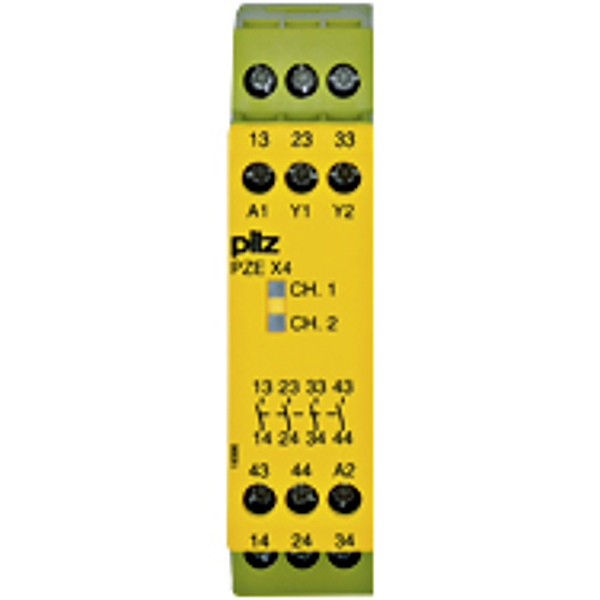

Pilz 774585
PZE X4 24VDC 4n/o
Contact expansion Inputs: Single-channel wiring Outputs: 4 N/O. UB 24 V DC, width: 22.5 mm, contact block for contact expansion in, connection with safety-related control components.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Instantaneous contact expansion |
| Operating modes:: | Single-channel, without detection of shorts across contacts |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Terminal style:: | fixed |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 4 |
| Number of delayed safety contacts:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 5.0 A |
| Voltage at AC15:: | 230 V |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 180 g |
| Net weight:: | 175 g |
| Ambient temperature:: | -10 - 55 °C |
