Product
Pilz
774081
PNOZ 11 42VAC 24VDC 7n/o 1n/c
Request a Quote
Image copyright: Pilz

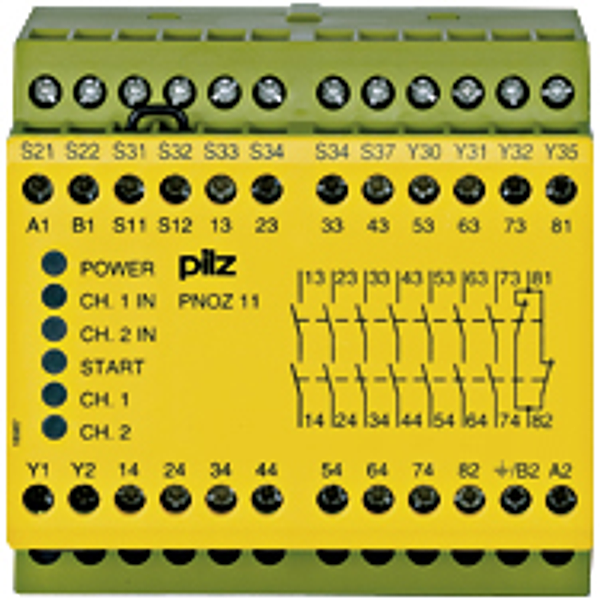

Pilz 774081
PNOZ 11 42VAC 24VDC 7n/o 1n/c
Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection, of shorts across contacts Outputs: 7 N/O, 1 N/C, 2 semiconductor. Automatic/monitored start UB 42 V AC/24 V DC, width: 90 mm, integral screw terminals, Monitoring E-STOP, safety gates.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Instantaneous E-STOP monitoring, Limit switch, Safety gate monitor |
| Operating modes:: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset |
| Product standard:: | EN 60947-5-1 |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 42,0 |
| Supply voltage type:: | AC |
| Supply voltage type 2:: | DC |
| Supply voltage 2 (V):: | 24 |
| Terminal style:: | fixed |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 7 |
| Number of delayed safety contacts:: | 0 |
| Number of auxiliary contacts:: | 1 |
| Number of semiconductor outputs:: | 2 |
| Stop category:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 7.0 A |
| Max. current at AC15:: | 5.0 A |
| Width dimension:: | 90.0 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 650 g |
| Net weight:: | 640 g |
| Ambient temperature:: | -10 - 55 °C |
