Product
Pilz
774070
PNOZ 16S 24VAC 24VDC 2n/o 2so
Request a Quote
Image copyright: Pilz

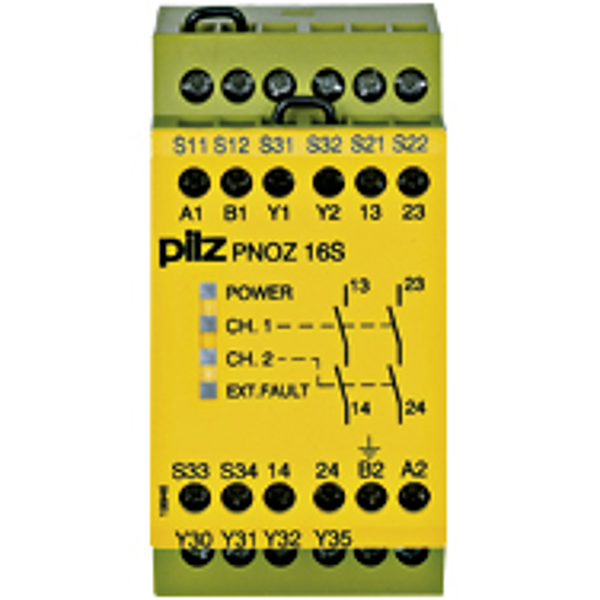

Pilz 774070
PNOZ 16S 24VAC 24VDC 2n/o 2so
Safety relay (standalone) Inputs: 1- / 2-channel wiring with detection, of shorts across contacts Outputs: 2 N/O, 2 semiconductor UB 24 V. AC/24 V DC, width: 45 mm, integral screw terminals, Monitoring. E-STOP, safety gates, pressure sensitive mats (in accordance with the, short circuit principle).
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, CCC |
| Application options:: | Instantaneous E-STOP monitoring, Limit switch, Pressure sensitive edge, Pressure sensitive mat, Safety gate monitor |
| Operating modes:: | Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts |
| Product standard:: | EN 60947-5-1 |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Number of instantaneous safety contacts:: | 2 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | AC |
| Supply voltage 2 (V):: | 24 |
| Supply voltage type 2:: | DC |
| Terminal style:: | fixed |
| Terminal type:: | Screw terminal |
| Stop category:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 6.0 A |
| Max. current at AC15:: | 5.0 A |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 360 g |
| Net weight:: | 350 g |
| Ambient temperature:: | -10 - 55 °C |
