Product
Pilz
774056
PNOZ X7 230VAC 2n/o
Request a Quote

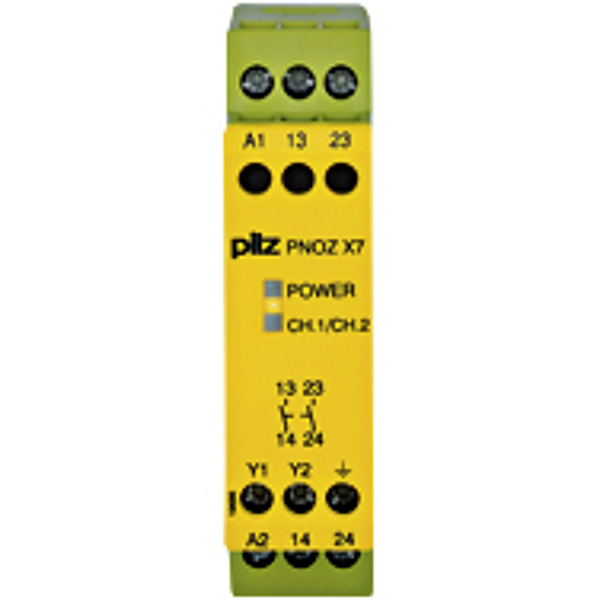

Image copyright: Pilz
Pilz 774056
PNOZ X7 230VAC 2n/o
Safety relay (standalone) Inputs: Single-channel wiring Outputs: 2 N/O. Automatic/manual start UB 230 V AC, width: 22.5 mm, integral screw terminals, Monitoring E-STOP, safety gates.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC |
| Application options:: | Instantaneous E-STOP monitoring, Limit switch, Safety gate monitor |
| Operating modes:: | Single-channel, Automatic reset, Manual reset |
| Product standard:: | EN 60947-5-1 |
| Standards:: | EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Supply voltage (V):: | 230,0 |
| Supply voltage type:: | AC |
| Terminal style:: | fixed |
| Terminal type:: | Screw terminal |
| Number of instantaneous safety contacts:: | 2 |
| Number of delayed safety contacts:: | 0 |
| Number of semiconductor outputs:: | 0 |
| Stop category:: | 0 |
| Max. current at DC13 I (6 cycles/min):: | 4.0 A |
| Max. current at AC15:: | 4.0 A |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 87.0 mm |
| Depth dimension:: | 121.0 mm |
| Gross weight:: | 235 g |
| Net weight:: | 225 g |
| Ambient temperature:: | -10 - 55 °C |
