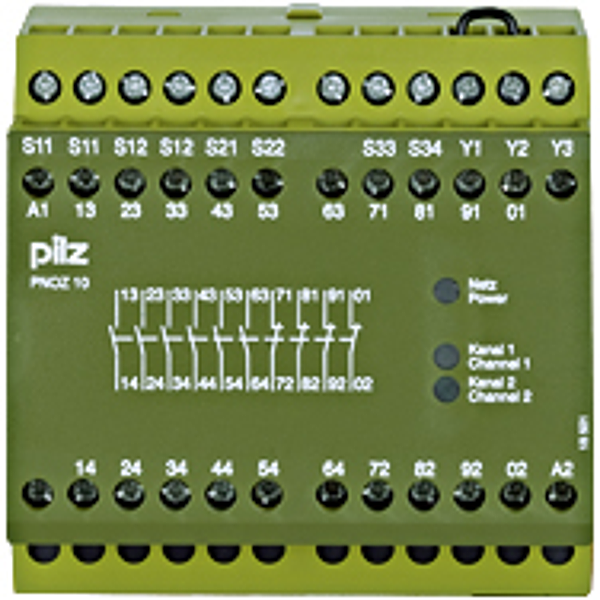

Article image 774009

Pilz 774009

PNOZ 10 24VDC 6n/o 4n/c

Safety relay (standalone) Inputs: 1-/2-channel wiring with/without, detection of shorts across contacts. Outputs: 6 N/O, 4 N/C UB 24 V DC,, width: 90 mm, integral screw terminals, Monitoring E-STOP, safety gates.

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Technical parameters

Certifications:: CE, cULus Listed, EAC (Eurasian), TÜV, CCC
Application options:: Instantaneous E-STOP monitoring, Limit switch, Light beam device mon. Type 2 with t/p, Light beam device mon. Type 2 w/o t/p, Light beam device mon. Type 4, Safety gate monitor
Operating modes:: Single-channel, Automatic reset, Dual-channel, Manual reset, Detection of shorts across contacts, Monitored manual reset, without detection of shorts across contacts
Product standard:: EN 60947-5-1
Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
Supply voltage (V):: 24,0
Supply voltage type:: DC
Terminal style:: fixed
Terminal type:: Screw terminal
Number of instantaneous safety contacts:: 6
Number of delayed safety contacts:: 0
Number of auxiliary contacts:: 4
Number of semiconductor outputs:: 0
Stop category:: 0
Max. current at DC13 I (6 cycles/min):: 7.0 A
Max. current at AC15:: 5.0 A
Width dimension:: 90.0 mm
Height dimension:: 87.0 mm
Depth dimension:: 121.0 mm
Gross weight:: 570 g
Net weight:: 560 g
Ambient temperature:: -10 - 55 °C
