Product
Pilz
751156
PNOZ s6.1 C 48-240VACDC 3 n/o 1 n/c
Request a Quote
Image copyright: Pilz

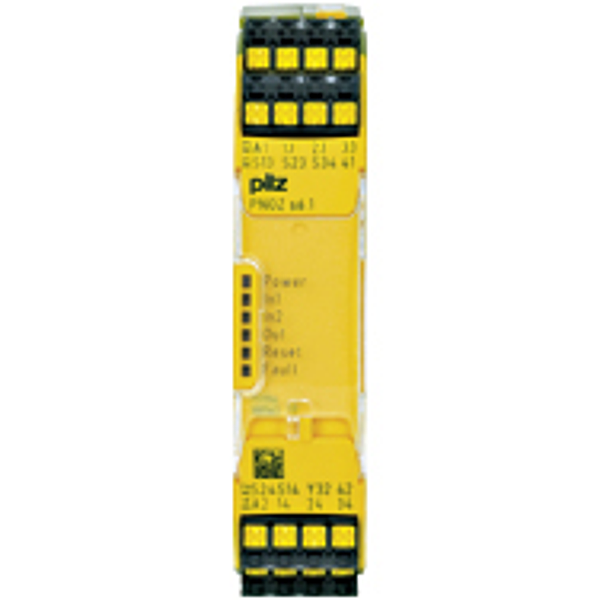

Pilz 751156
PNOZ s6.1 C 48-240VACDC 3 n/o 1 n/c
PNOZsigma Safety relay (standalone). Inputs: 1 N/O, 1 N/C per pushbutton. Outputs: 3 N/O, 1 N/C, 1 semiconductor, UB 48 - 240 V AC/DC, width:. 22.5 mm, plug-in spring-loaded terminals. Two-hand control device, monitoring, the simultaneity of a two-hand pushbutton.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, KOSHA, CCC |
| Application options:: | Simultaneity monitoring, Two-hand monitoring Type III A |
| Max. current at DC1:: | 6.0 A |
| Voltage at AC1:: | 240 V |
| Terminal type:: | Spring-loaded terminal |
| Terminal style:: | Plug-in |
| Stop category:: | 0 |
| Standards:: | EN 574 TYP III A, EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1 |
| Operating modes:: | Dual-channel, Detection of shorts across contacts |
| Supply voltage (V):: | 48,0 - 240,0 |
| Width dimension:: | 22.5 mm |
| Height dimension:: | 100.0 mm |
| Depth dimension:: | 120.0 mm |
| Gross weight:: | 215 g |
| Net weight:: | 205 g |
| Ambient temperature:: | -10 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
