Pilz
540130
SDD ES ETH
Request a Quote
Image copyright: Pilz

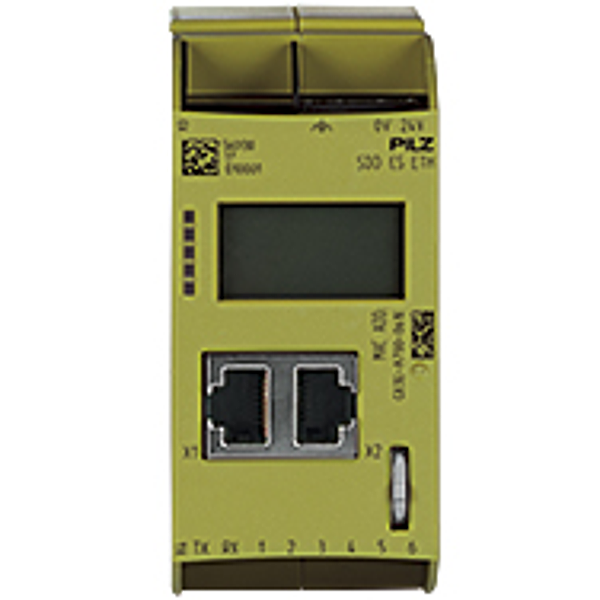

Pilz 540130
SDD ES ETH
Fieldbus modul Modbus/TCP for Safety Device Diagnostics
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed |
| Number of semiconductor outputs:: | 6 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Power consumption DC:: | 2.0 W |
| Terminal type:: | spring-loaded terminal, plug in, Schraubklemme steckbar |
| Fieldbus interface:: | Modbus/TCP |
| Fieldbus connection:: | RJ45 |
| Protection type, housing:: | IP20 |
| Width dimension:: | 45.0 mm |
| Height dimension:: | 115.0 mm |
| Depth dimension:: | 95.0 mm |
| Gross weight:: | 175 g |
| Net weight:: | 160 g |
| Ambient temperature:: | 0 - 55 °C |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
