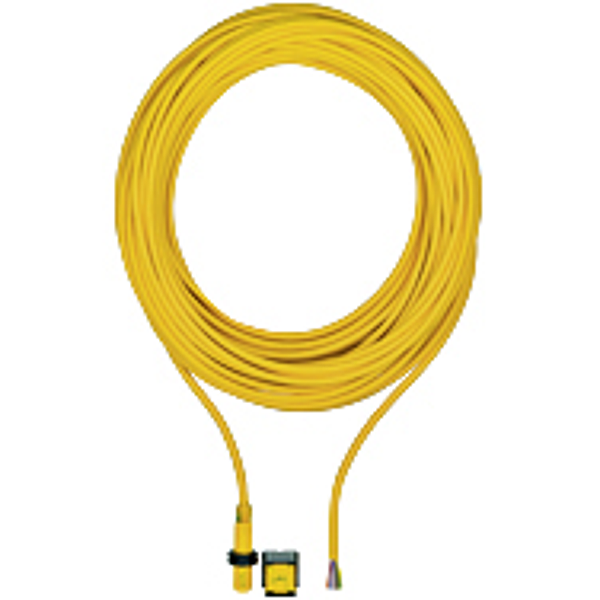

Pilz 506232
PSEN ma1.3b-20/PSEN ma1.3-12/12mm/1unit
Magnetic safety switch 3 N/O, round M12 design IP67, operating, distance 12 mm, PU = 1 piece with cuboid actuator, with 10 m cable. PUR).
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Housing material:: | PBT |
| Certifications:: | CE, cULus Listed, EAC (Eurasian), TÜV, UL/cUL, ECOLAB |
| Sensor principle:: | magnetic |
| Number of N/O:: | 3 |
| Connection type:: | 10m Kabel |
| Switching voltage:: | 24 V |
| Type of switching voltage:: | DC |
| Assured switching distance:: | 12.0 mm |
| Assured release distance:: | 25.0 mm |
| Protection type, housing:: | IP65 |
| Status indicator:: | With LED |
| Design:: | Round |
| Width dimension:: | 12.0 mm |
| Height dimension:: | 11.0 mm |
| Depth dimension:: | 59.1 mm |
| Gross weight:: | 395 g |
| Net weight:: | 386 g |
| Ambient temperature:: | -25 - 70 °C |
| Operating modes:: | Single connection |
