Pilz 265613
PMI 612 primo

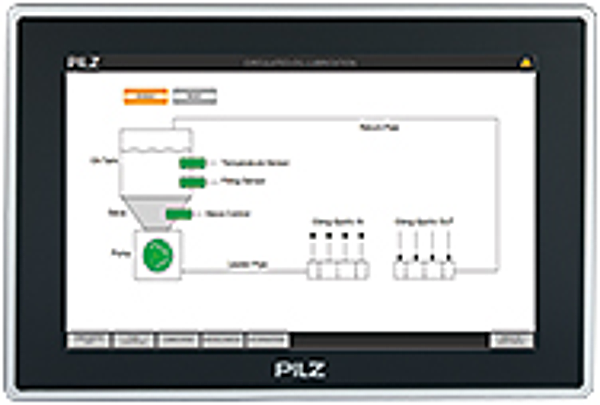

PMIprimo motion control panel with 12.1" touchscreen,. CODESYS runtime and TargetVisu installed/licensed,, mastersystems: CANopen, ModbusTCP, EtherCAT,, motion control: Dynamic curve calculation, CNC.
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Certifications:: | CE, cULus Listed, EAC (Eurasian) |
| Resolution:: | 1280 x 800 |
| Display type:: | TFT |
| Colour depth:: | 16,2 M |
| Display diagonal:: | 12.1 Zoll |
| Possible PMI applications:: | PSS/PSSu/PNOZmulti, PNOZmulti diagnostics, Diagnostics PSS / SafetyBUSp |
| Number of Ethernet interfaces:: | 1 |
| Number of RS 232 interfaces:: | 1 |
| Number of USB host interfaces:: | 2 |
| Supply voltage (V):: | 24,0 |
| Supply voltage type:: | DC |
| Operating system:: | Windows Embedded Compact 7 |
| Width dimension:: | 332.0 mm |
| Height dimension:: | 222.0 mm |
| Depth dimension:: | 83.0 mm |
| Gross weight:: | 5480 g |
| Net weight:: | 2730 g |
| Ambient temperature:: | 0 - 50 °C |
