Product
Omron
NS100012M
NS10-TV01B-V2
Request a Quote
Image copyright: Omron

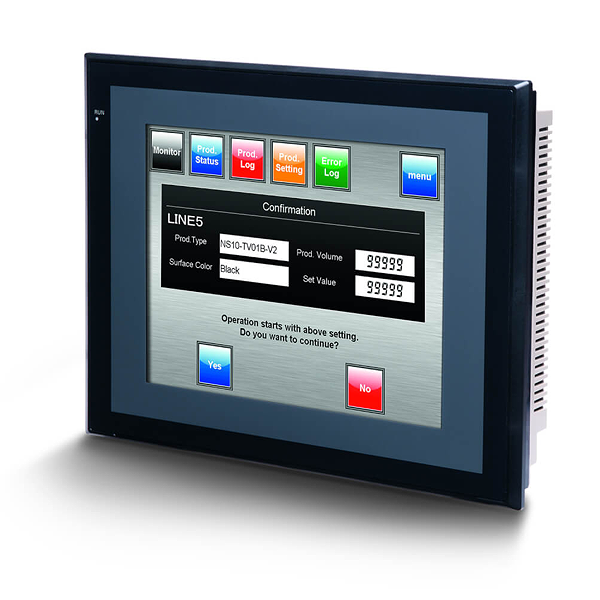

Omron NS100012M
NS10-TV01B-V2
Touch screen HMI, 10.4 inch, TFT, 256 colors (32,768 colors for .BMP/.JPG), 640x480 pixels, 2 x RS-232C ports, Ethernet (10/100 Base-T), 24 VDC, 60MByte memory, 24 VDC, black case
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Frame colour: | Black |
| Screen diagonal: | 10.4 in |
| Number of pixels, horizontal: | 640 |
| Number of pixels, vertical: | 480 |
| Type of display: | TFT |
| Number of colours of the display: | 32768 |
| Number of Ethernet ports: | 1 |
| Number of RS-232 ports: | 2 |
| Number of RS-422 ports: | 0 |
| Number of RS-485 ports: | 0 |
| Number of USB ports: | 1 |
| Degree of protection (IP), front side: | IP65 |
| Width of the front: | 323 mm |
| Height of the front: | 241 mm |
| Width of panel cutout: | 302 mm |
| Height of panel cutout: | 228 mm |
| Built-in depth: | 42 mm |
| Product Weight (unpacked): | 2300 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | JPN |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
