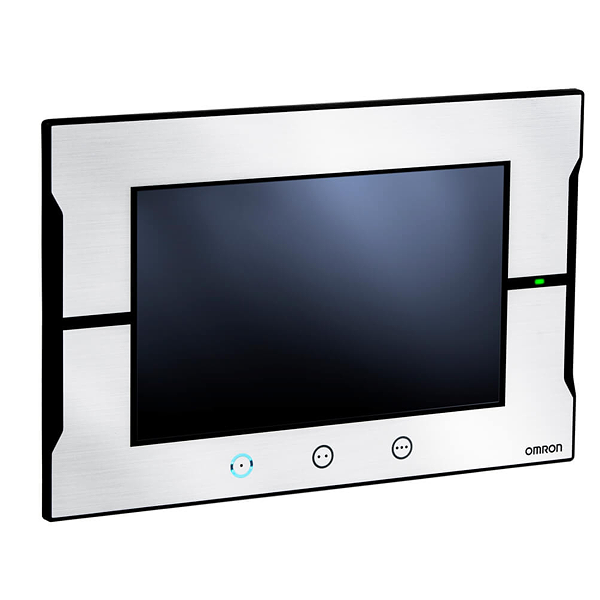

Omron NA579011M
NA5-9W001S-V1
Touch screen HMI, 9 inch wide screen, TFT LCD, 24bit color, 800x480 resolution, frame color : Silver
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Screen diagonal: | 9 in |
| Number of pixels, horizontal: | 800 |
| Number of pixels, vertical: | 480 |
| Type of display: | TFT |
| Frame colour: | Silver |
| Number of Ethernet ports: | 2 |
| Number of RS-232 ports: | 1 |
| Number of RS-422 ports: | 0 |
| Number of RS-485 ports: | 0 |
| Number of USB ports: | 3 |
| Number of colours of the display: | 16777216 |
| Degree of protection (IP), front side: | IP65 |
| Width of the front: | 290 mm |
| Height of the front: | 190 mm |
| Width of panel cutout: | 260 mm |
| Height of panel cutout: | 165 mm |
| Built-in depth: | 63.1 mm |
| Product Weight (unpacked): | 1700 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | NLD |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
