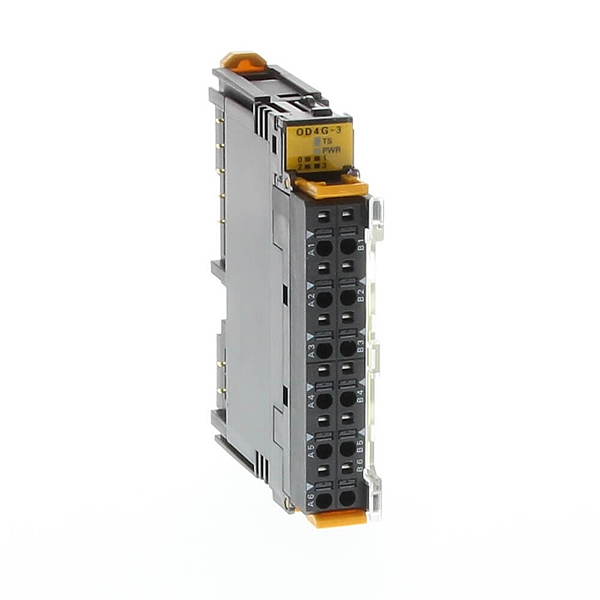

Omron GRT19020D
GRT1-OD4G-3
SmartSlice 4 x digital outputs 2 A, 24 VDC, PNP, with overcurrent and short-circuit protection
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| I/O system: | GRT1 I/O Bus |
| Type of module: | Digital I/O |
| I/O connection type: | Push-in |
| Connection method: | 2-wire |
| Number of digital inputs: | 0 |
| Digital input type: | None |
| Number of digital outputs: | 4 |
| Digital output type: | PNP |
| Permitted voltage at output: | 20.4-26.4 V |
| Output current: | 2 A |
| Short-circuit protected outputs: | |
| Number of IOV (V+) terminals: | 2 |
| Number of IOG (V-) terminals: | 6 |
| Degree of protection (IP): | IP20 |
| Height: | 84 mm |
| Width: | 15 mm |
| Depth: | 74.4 mm |
| Product Weight (unpacked): | 76 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | NLD |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
