Omron
G3PE2029C
G3PE-515B-3 12-24VDC
Request a Quote
Image copyright: Omron

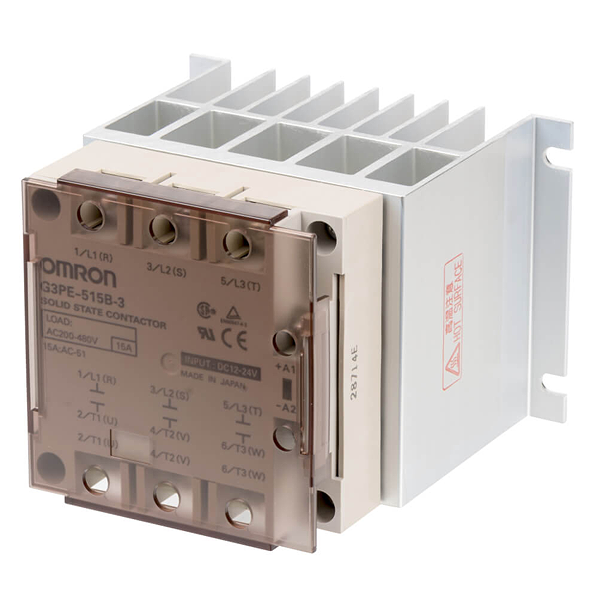

Omron G3PE2029C
G3PE-515B-3 12-24VDC
Solid-State relay, 3-pole, screw mounting, 15A, 528VAC max
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Application: | ON/OFF control |
| Number of phases: | 3 |
| Number of poles: | 3 |
| Mounting method: | Screw |
| Terminal: | Screw |
| Complete with socket: | |
| With LED indicator: | |
| Rated operational voltage, AC: | 200-480 V |
| Operating voltage range, AC: | 180-528 V |
| Rated operation current Ie at AC-1: | 15 A |
| Permissible I²t value: | 260 A²s |
| Applicable heater capacity (AC1: resistive load): | 12.5 kW |
| Height: | 84.5 mm |
| Width: | 110.5 mm |
| Depth: | 105 mm |
| Supply voltage DC: | 12-24 V |
| Control current max.: | 10 mA |
| Must operate voltage max.: | 9.6 V |
| Must release voltage min.: | 1 V |
| Maximum operating temperature: | 80 °C |
| Minimum operating temperature: | -30 °C |
| Isolation: | Phototriac |
Logistic parameters
| ECCN: | |
| Country of Origin: | JPN |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
