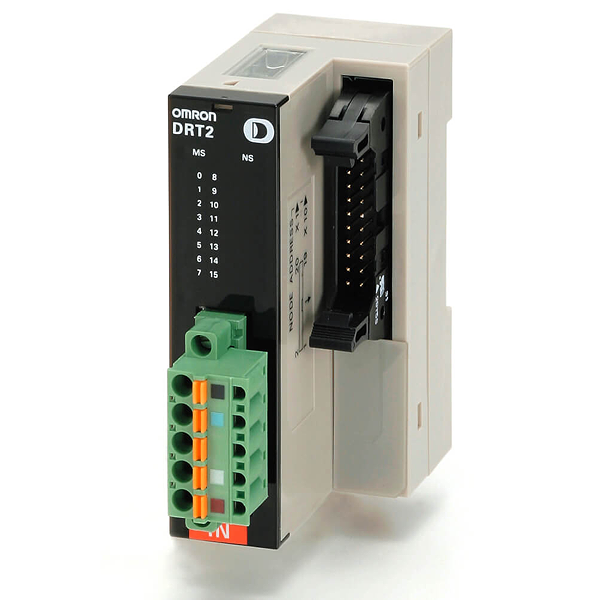

Omron DRT20090R
DRT2-OD16MLX
DeviceNet digital output unit, 16 x transistor outputs 0.3 A, 24 VDC, NPN, with MIL connector + 10 cm cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Communication port(s): | DeviceNet Slave |
| Type of module: | Digital I/O |
| I/O connection type: | MIL (plug not included) |
| Connection method: | 1-wire |
| Number of digital inputs: | 0 |
| Digital input type: | None |
| Number of digital outputs: | 16 |
| Digital output type: | NPN |
| Permitted voltage at output: | 0-26.4 V |
| Output current: | 0.3 A |
| Short-circuit protected outputs: | |
| I/O system: | None |
| Degree of protection (IP): | IP20 |
| Height: | 90 mm |
| Width: | 35 mm |
| Depth: | 60 mm |
| Product Weight (unpacked): | 170 g |
