Product
Omron
CP1W9282G
CP1W-MAD42
Request a Quote
Image copyright: Omron

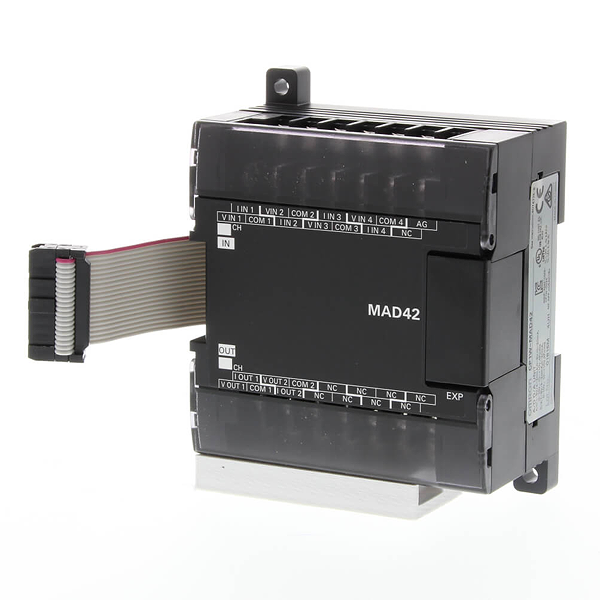

Omron CP1W9282G
CP1W-MAD42
I/O expansion unit, 4 x analog inputs and 2 x analog outputs
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Type of module: | Analog I/O |
| Number of analog inputs: | 4 |
| Linear analog input type: | -10 to 10 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature input type: | None |
| Resolution of the analog inputs: | 14 Bit |
| Number of analog outputs: | 2 |
| Linear analog output type: | -10 to 10 V, 0 to 10 V, 0 to 20 mA, 1 to 5 V, 4 to 20 mA |
| Resolution of the analog outputs: | 14 Bit |
| Height: | 90 mm |
| Width: | 86 mm |
| Depth: | 50 mm |
Logistic parameters
| ECCN: | |
| Country of Origin: | NLD |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
