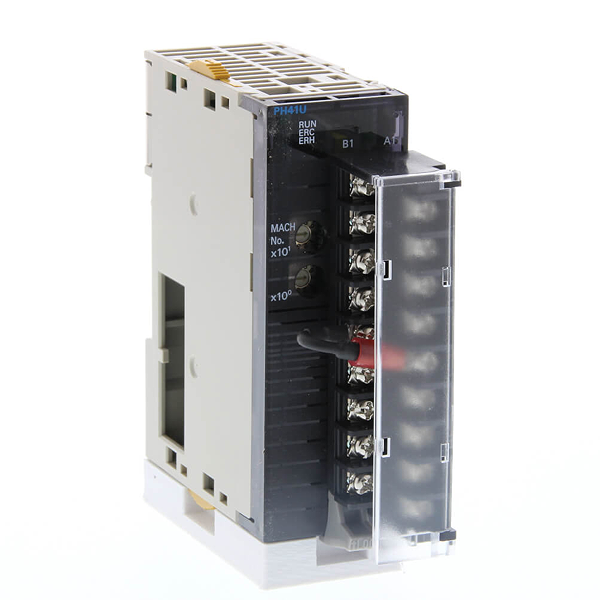

Image copyright: Omron
Omron CJ1W0250M
CJ1W-PH41U
Universal analog input unit, high resolution, 4 x inputs ±100mV up to ±10 V, potentiometer, 0 to 20 mA, 4 to 20 mA, thermocouple (K, J, T, E, L, U, N, R, S, B), Pt100 (3-wire), screw terminal
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| I/O system: | CJ I/O Bus |
| Expansion unit type: | Special I/O Unit |
| Type of module: | Analog I/O |
| Number of analog inputs: | 4 |
| Temperature input type: | B, E, J, K, L, N, Pt100, R, S, T, U |
| Linear analog input type: | -1.25 to 1.25 V, -10 to 10 V, -100 to 100 mV, -5 to 5 V, 0 to 1.25 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA, Potentiometer |
| Resolution of the analog inputs: | 18 Bit |
| Number of analog outputs: | 0 |
| Linear analog output type: | None |
| I/O connection type: | Screw |
| Number of I/O connectors: | 1 |
| Detachable I/O connector: | |
| Suitable for safety functions: | |
| Height: | 90 mm |
| Width: | 31 mm |
| Depth: | 89 mm |
Logistic parameters
| ECCN: | |
| Country of Origin: | JPN |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
