Product
Omron
AA034686G
CIMR-AC4A0296AAA
Request a Quote
Image copyright: Omron

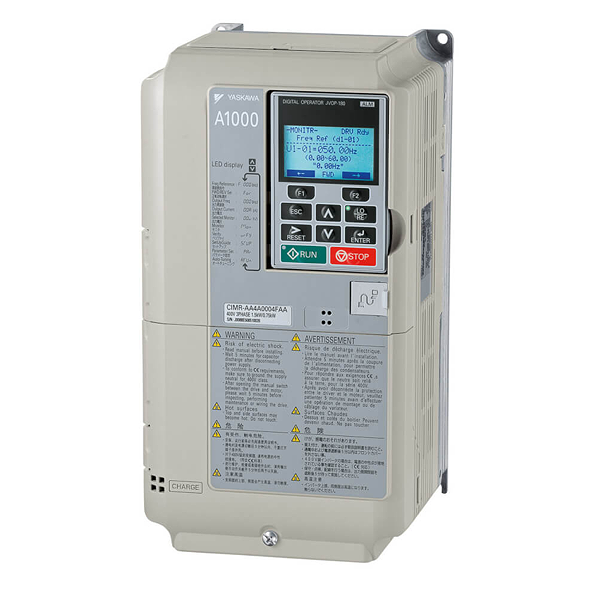

Omron AA034686G
CIMR-AC4A0296AAA
A1000 inverter: 3~ 400 V, HD: 132 kW 296 A, ND: 160 kW 304 A, max. output freq. 400Hz
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Inverter control method: | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage: | 400 V three phase |
| Max. motor output at constant torque (HD): | 132 kW |
| Max. motor output at variable torque (ND): | 160 kW |
| Built in EMC filter: | |
| Degree of protection (IP): | IP00 |
| Finless type: | |
| Compatible motor type: | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions: | As inverter option |
| Communication port(s): | MODBUS Slave, Serial RS-422, Serial RS-485 |
| Communication option(s): | CANopen, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, MECHATROLINK II Slave, MODBUS/TCP, POWERLINK, PROFIBUS DP Slave, PROFINET Slave |
| Height: | 800 mm |
| Width: | 500 mm |
| Depth: | 350 mm |
| Product Weight (unpacked): | 102000 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | GBR |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
