Product
Omron
689980
CP2E-N20DR-A
Request a Quote
Image copyright: Omron

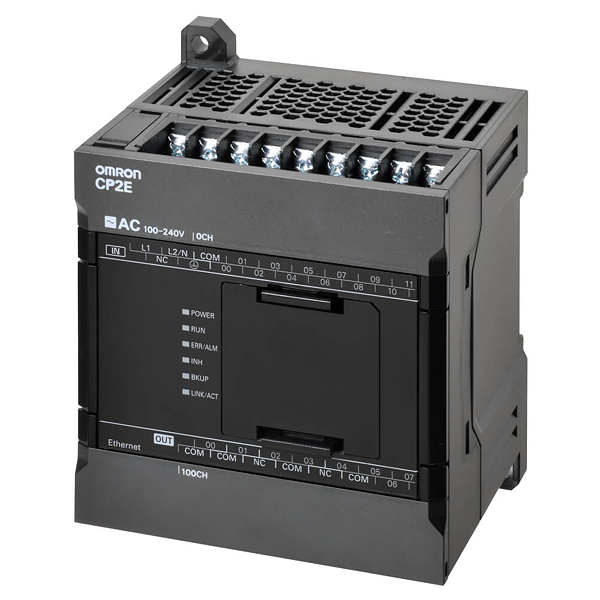

Omron 689980
CP2E-N20DR-A
CP2E series compact PLC - Network type; 12 DI, 8DO; Relay output; Power supply 220 VAC; 10 kStep Program memory
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Supply voltage type: | AC |
| Number of digital inputs: | 12 |
| Input type: | PNP/NPN |
| Number of digital outputs: | 8 |
| Output type: | Relay |
| Program capacity: | 10 K steps |
| Data memory capacity: | 10 K words |
| Logic execution time: | 0.23 µs |
| Communication port(s): | Ethernet TCP/IP |
| Number of Ethernet ports: | 1 |
| Number of USB ports: | 0 |
| Number of RS-232 ports: | 0 |
| Number of RS-485 ports: | 0 |
| Communication option(s): | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Number of encoder input channels: | 6 |
| Max. encoder input frequency: | 100 kHz |
| Max. number of PTP axes: | 0 |
| Max. pulse output frequency: | 0 kHz |
| Function Block programming: | |
| Battery-free memory backup: | |
| Real-time clock: | |
| Analog option boards: | |
| Max. number of analog I/O channels: | 4 |
| Max. number of local I/O points: | 20 |
| Max. number of expansion units: | 0 |
| Built-in auxiliary 24 VDC output: | 0 mA |
| Operating temperature range: | -20-60 °C |
| Height: | 90 mm |
| Width: | 86 mm |
| Depth: | 80 mm |
| Product Weight (unpacked): | 0 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | China |
| EAN: | 4549734542142 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
