Product
Omron
688364
E2EQ-X12B1T18 2M
Request a Quote
Image copyright: Omron

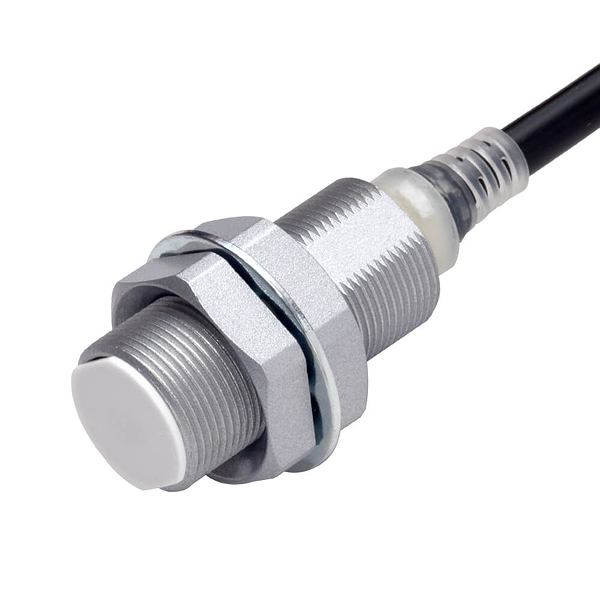

Omron 688364
E2EQ-X12B1T18 2M
Proximity sensor, inductive, fluororesin coating (base material: brass), M18, shielded, 12 mm, DC, 3-wire, PNP NO, IO-Link COM3, 2 m prewired
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Features: | Fluoroplastic coating |
| Size: | M18 |
| Mounting type: | Quasi-flush |
| Sensing distance: | 12 mm |
| Overall length: | 55.3 mm |
| Thread length: | 34 mm |
| Material housing: | Brass, PTFE coated |
| Output type: | IO-Link, PNP |
| Operation mode: | NO |
| Connection method: | Cable |
| Cable specifications: | PVC (oil-resistant) |
| Cable length: | 2 m |
| IO-Link baud rate: | COM3 (230.4 kbps) |
Logistic parameters
| ECCN: | |
| Country of Origin: | China |
| EAN: | 4549734486163 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
