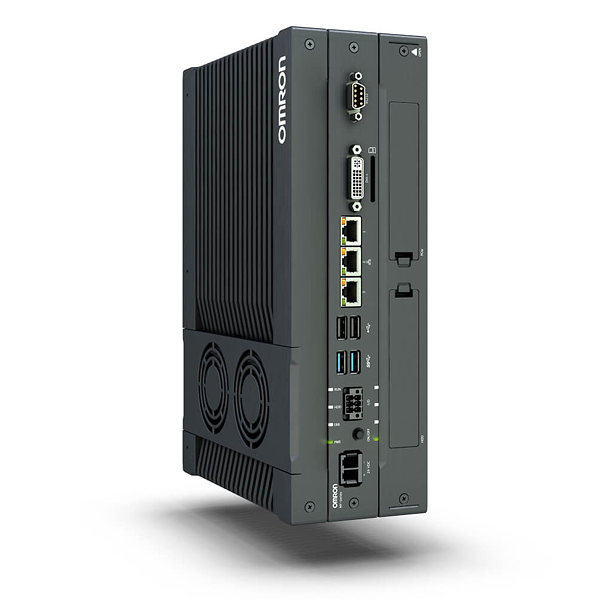

Omron 686587
NYB17-21001
Industrial Box PC with Intel® Core™ i7-4700EQ, 4 GB DRAM (non-ECC), No storage, No OS, PCIe slot, RS-232
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Max. number of motion axes: | 0 axes |
| Processor family: | Intel® Core™ i7 |
| Processor specification: | 4700EQ (2.4 GHz) |
| Cooling method: | Active cooling (fan) |
| Memory: | 4 GB RAM (non ECC) |
| Storage: | No Storage |
| Operating system: | No OS |
| Expansion slot: | 1 x PCIe slot (X4 lanes) |
| Modular port: | RS-232 |
| Communication port(s): | EtherNet/IP, Ethernet TCP/IP, Serial RS-232C, USB |
| Video output: | DVI-I |
| Material housing: | Aluminium, black |
| Degree of protection (IP): | IP20 |
| Operation temperature: | 0-55 °C |
| Supply voltage DC: | 20.4-28.8 V |
| Height: | 89 mm |
| Width: | 282 mm |
| Depth: | 195 mm |
| Product Weight (unpacked): | 3900 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | The Netherlands |
| EAN: | 4549734142939 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
