Product
Omron
686250
R89F-DS1225H
Request a Quote
Image copyright: Omron

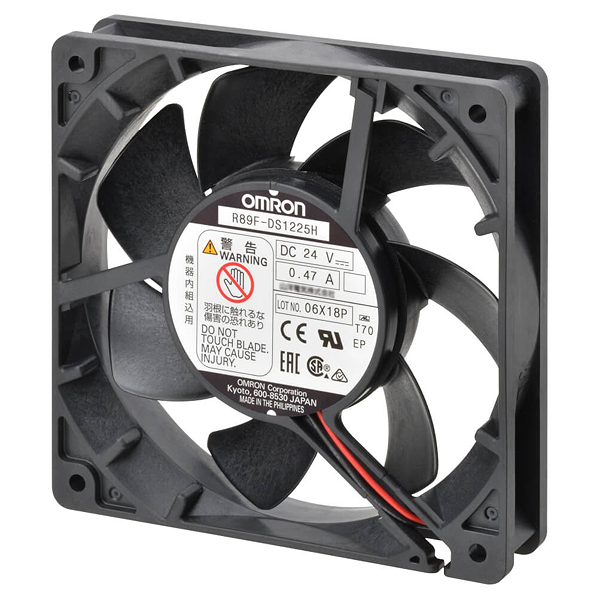

Omron 686250
R89F-DS1225H
DC Axial fan, plastic blade, frame 120x25, high speed
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Size: | 120 x 120 x 25 mm |
| Operating voltage at DC: | 20.4-27.6 V |
| Rated current: | 0.47 A |
| Rated power: | 11.28 VA |
| Rated rotational speed: | 4100 r/min |
| Maximum flow rate: | 3.68 m³/min |
| Maximum static pressure: | 120 Pa |
| Noise emission: | 51 dB(A) |
| Set content: | Fan only |
Logistic parameters
| ECCN: | |
| Country of Origin: | Phillippines |
| EAN: | 4549734444378 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
