Omron 686238
R89F-MS0938LP-S1

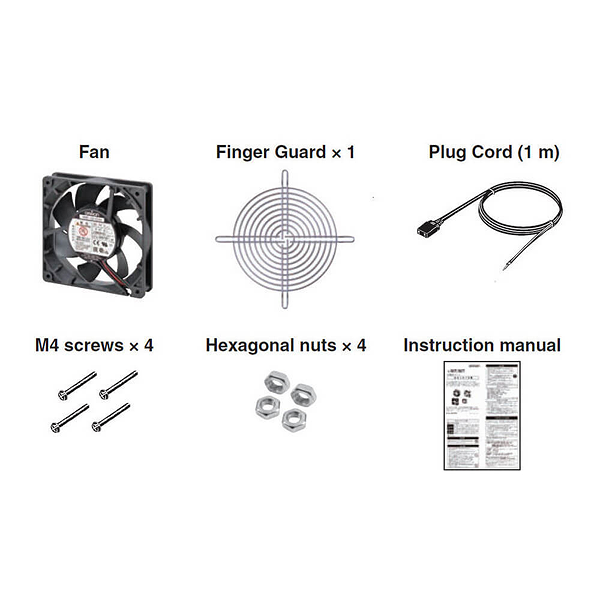

AC Axial fan, plastic blade, frame 92x38, low speed, 1 x finger guard, 4 x M4 x 55 mm screws, 4 x M4 nuts, 1 m connector cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Technical parameters
| Size: | 92 x 92 x 38 mm |
| Operating voltage at AC 50 Hz: | 90-264 V |
| Rated current: | 0.06 A |
| Rated power: | 3.0 VA |
| Rated rotational speed: | 3100 r/min |
| Maximum flow rate: | 1.18 m³/min |
| Maximum static pressure: | 56 Pa |
| Noise emission: | 33 dB(A) |
| Set content: | 1 x Finger guard, Fan, M4 x 55 mm Screws, Nuts, Plug cord (1 m) |
Logistic parameters
| ECCN: | |
| Country of Origin: | Phillippines |
| EAN: | 4549734444613 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
