Product
Omron
686025
NX-ID3417
Request a Quote

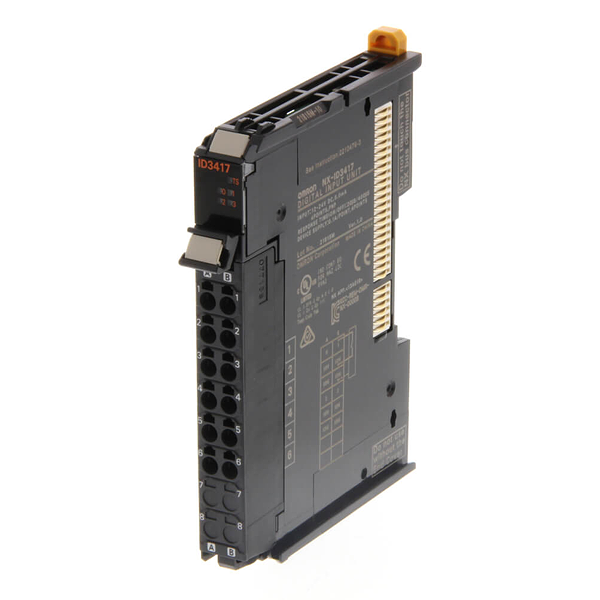

Image copyright: Omron
Omron 686025
NX-ID3417
4 Digital Inputs, Standard speed, PNP 24 VDC, screwless push-in connector, 12 mm wide
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Programmierbare Maschinensteuerung - NX modulares E/A-System - 4 Digitaleingänge pnp - 12...24VDC, 20/400µs - Schraublosklemmblock, kodierbar - 3-Draht-Anschluss - IP20 - CE, cULus, KC
Technical parameters
| I/O system: | NX I/O Bus |
| Type of module: | Digital I/O |
| Number of digital inputs: | 4 |
| Digital input type: | PNP |
| Permitted voltage at input: | 9-28.8 V |
| OFF/ON delay: | 0.02-0.4 ms |
| Number of digital outputs: | 0 |
| Digital output type: | None |
| Short-circuit protected outputs: | |
| Connection method: | 2-wire, 3-wire |
| Signal processing: | Free running, Standard speed, Synchronous |
| IO link master: | |
| I/O connection type: | Push-in |
| Number of I/O connectors: | 1 |
| Detachable I/O connector: | |
| Suitable for safety functions: | |
| SIL according to IEC 61508: | None |
| Number of IOV (V+) terminals: | 4 |
| Number of IOG (V-) terminals: | 4 |
| Number of COM terminals: | 0 |
| Degree of protection (IP): | IP20 |
| Height: | 100 mm |
| Width: | 12 mm |
| Depth: | 71 mm |
| Product Weight (unpacked): | 65 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | The Netherlands |
| EAN: | 4549734450478 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
