Product
Omron
686020
NX-AD4203
Request a Quote

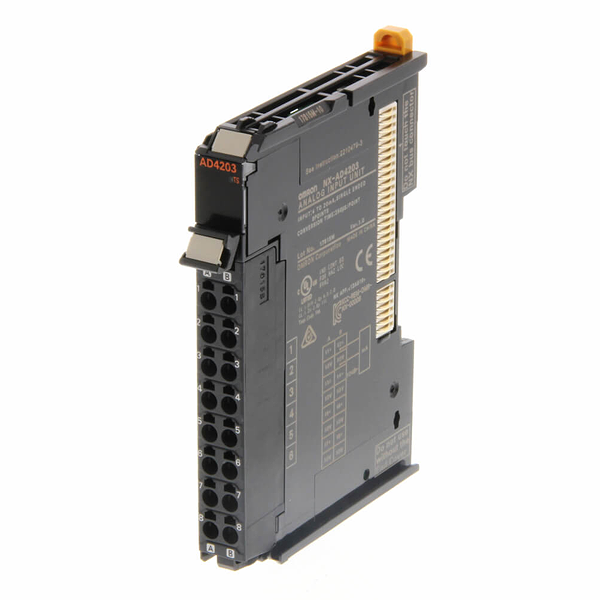

Image copyright: Omron
Omron 686020
NX-AD4203
8 Analog Inputs, 4 to 20 mA single ended, resolution 1:8000, 250 µs/ch, screwless push-in connector, 12 mm wide
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Programmierbare Maschinensteuerung - NX modulares E/A-System - 8 Analogeingänge - Auflösung: 1/8000 - 250µs je Eingang - asymetrischer Eingang, 4…20mA - 2-Draht-Anschluss - Schraublosklemmblock, kodierbar - IP20 - CE, cULus, KC
Technical parameters
| I/O system: | NX I/O Bus |
| Type of module: | Analog I/O |
| Number of analog inputs: | 8 |
| Temperature input type: | None |
| Linear analog input type: | 4 to 20 mA |
| Resolution of the analog inputs: | 13 Bit |
| Input circuit type: | Single-ended |
| Number of analog outputs: | 0 |
| Linear analog output type: | None |
| Conversion time: | 2 ms/unit |
| Signal processing: | Free running |
| IO link master: | |
| I/O connection type: | Push-in |
| Number of I/O connectors: | 1 |
| Detachable I/O connector: | |
| Suitable for safety functions: | |
| SIL according to IEC 61508: | None |
| Degree of protection (IP): | IP20 |
| Height: | 100 mm |
| Width: | 12 mm |
| Depth: | 71 mm |
| Product Weight (unpacked): | 70 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | The Netherlands |
| EAN: | 4549734450423 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
