Product
Omron
668671
CP1L-L10DT1-D
Request a Quote

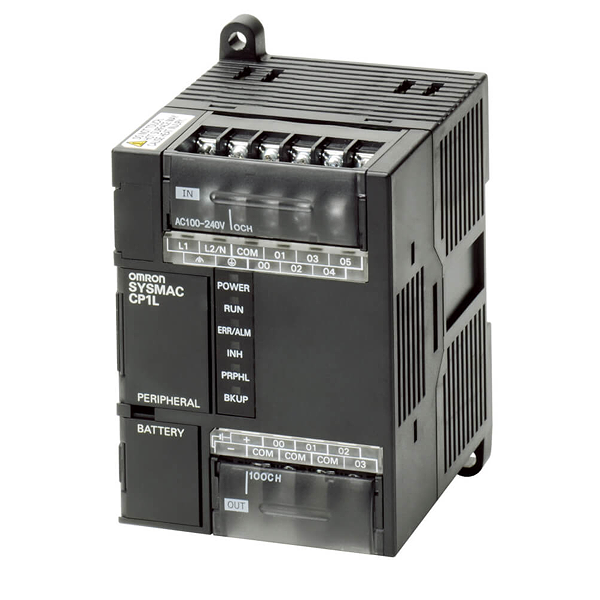

Image copyright: Omron
Omron 668671
CP1L-L10DT1-D
PLC, 24 VDC supply, 6 x 24 VDC inputs, 4 x PNP outputs 0.3 A, 5K steps program + 10K words data memory
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Speicherprogrammierbare Steuerung - CPU-Baugruppe CP1L, kompakt - 6 digit. Eing., 4 Tr.ausg. pnp - UB: 24 VDC, Schraubklemmleiste - Speicher: 5kSteps Programm, 10kW Daten - USB-B-Schnittstelle, Speichermodul-Steckplatz - 2 Eingang-Interupts, 4/2 schnelle Zähler 100/50kHz - 2 Impulszugausgänge 100kHz - Eingänge 24VDC - Ausgänge 24VDC/0,3A - max. 10 digit. E/A, nicht erweiterbar - Analogwertgeber: Pot. u Eing. 0..10V - Basisbefehl-Ausführungzeit: 0,61µs - Funktionsblock-Programmierung - Anwender- und Herstellerspezifische FB's - IP20 - CE, cULus, Lloyds
Technical parameters
| Supply voltage type: | DC |
| Number of digital inputs: | 6 |
| Input type: | PNP/NPN |
| Number of digital outputs: | 4 |
| Output type: | PNP |
| Program capacity: | 5 K steps |
| Data memory capacity: | 10 K words |
| Logic execution time: | 0.55 µs |
| Communication port(s): | USB |
| Number of Ethernet ports: | 0 |
| Number of USB ports: | 1 |
| Number of RS-232 ports: | 0 |
| Number of RS-485 ports: | 0 |
| Communication option(s): | None |
| Number of encoder input channels: | 4 |
| Max. encoder input frequency: | 100 kHz |
| Max. number of PTP axes: | 2 |
| Max. pulse output frequency: | 100 kHz |
| Function Block programming: | |
| Battery-free memory backup: | |
| Real-time clock: | |
| Analog option boards: | |
| Max. number of analog I/O channels: | 1 |
| Max. number of local I/O points: | 10 |
| Max. number of expansion units: | 0 |
| Built-in auxiliary 24 VDC output: | 0 mA |
| Operating temperature range: | 0-55 °C |
| Height: | 90 mm |
| Width: | 66 mm |
| Depth: | 85 mm |
| Product Weight (unpacked): | 270 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | The Netherlands |
| EAN: | 4548583764750 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
