Product
Omron
668642
H3DK-M1 24-240VAC/DC
Request a Quote
Image copyright: Omron

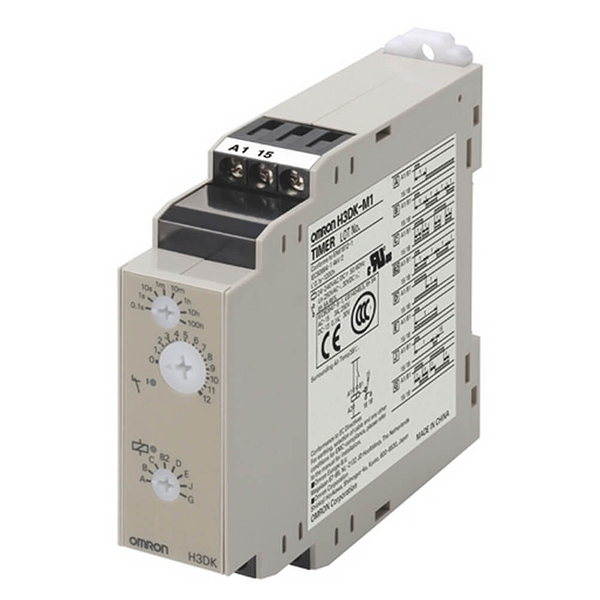

Omron 668642
H3DK-M1 24-240VAC/DC
Timer, DIN-rail mounting, multi range, multi mode timer, 8 modes incl. off-delay, 1 output relay, 24 to 240 VAC/DC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Multifunktion-Zeitrelais - 22,5mm breit, Schaltausgang: 1 W - 8 Zeitfunktionen, Starteingang - 0,1s..1200h, SW: analoge Vorgabe - IP30, Terminals IP20 - UL, CSA, LR, CCC, entspricht EN61812-1
Technical parameters
| Type: | Analog |
| Installation type: | DIN Rail |
| Functions: | Multi-functional |
| Size: | 22.5 mm |
| Terminal: | Screw |
| Operating mode: | Flicker OFF Start (Power ON Start), Flicker OFF Start (Signal Start), Flicker ON Start (Power ON Start), Flicker ON Start (Signal Start), Interval (Power ON Start), Interval (Signal Start), ON Delay (Power ON Start), ON Delay (Signal Start), One-shot Output (Power ON Start), One-shot Output (Signal Start), Signal ON/OFF Delay |
| Output type: | Relay |
| Contact description: | SPDT |
| Time range: | 0.1 s - 1200 h |
| Supply voltage AC: | 24-240 V |
| Supply voltage DC: | 24-240 V |
Logistic parameters
| ECCN: | |
| Country of Origin: | Indonesia |
| EAN: | 4548583744967 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
