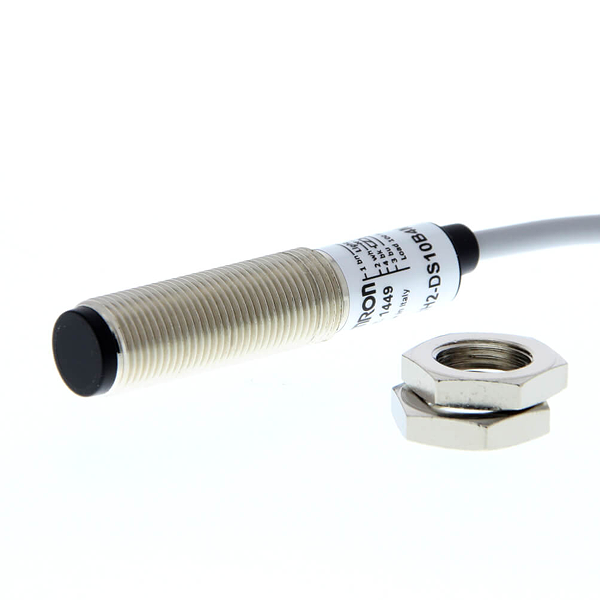

Omron 323686
E3H2-DS10B4M 2M
Photoelectric sensor M12 brass housing, diffuse, 100mm fixed, PNP, 2m cable
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Fotoschalter - Reflexionslichttaster, Tastweite 100mm - Messing-Gehäuse, M12x54,5mm - IR 880nm, 1,1ms, 10..30VDC, PNP, LON/DON - 2m Kabel - Schutzklasse: IP67 - Zulassungen: UL, CE
Technical parameters
| Shape: | Cylindrical axial |
| Sensing method: | Diffuse reflective |
| Sensing distance: | 100 mm |
| Setting method: | Fixed |
| Connection method: | Cable |
| Cable length: | 2 m |
| Output type: | PNP |
| Operation mode: | Dark-ON, Light-ON |
| Response time: | 1.1 ms |
| Material housing: | Brass, nickel plated |
| Thread size: | M12 |
| Length: | 59.5 mm |
| Type of light: | Infrared light |
| Power supply voltage: | 10-30 V |
Logistic parameters
| ECCN: | |
| Country of Origin: | Italy |
| EAN: | 4547648873017 |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
